A 3D sculptural rhinestone applique built through a four-step craft, hand-set by a fifty-plus craftsperson team, finished as Hot Fix or Sew On. A buyer reference for the LOCACRYSTAL Diamond Flower line.
Diamond Flower is a 3D sculptural rhinestone applique. Instead of a continuous sheet or roll, each piece arrives as a complete motif — laser-cut, heat-pressed into dimensional form, then hand-set with additional stones.

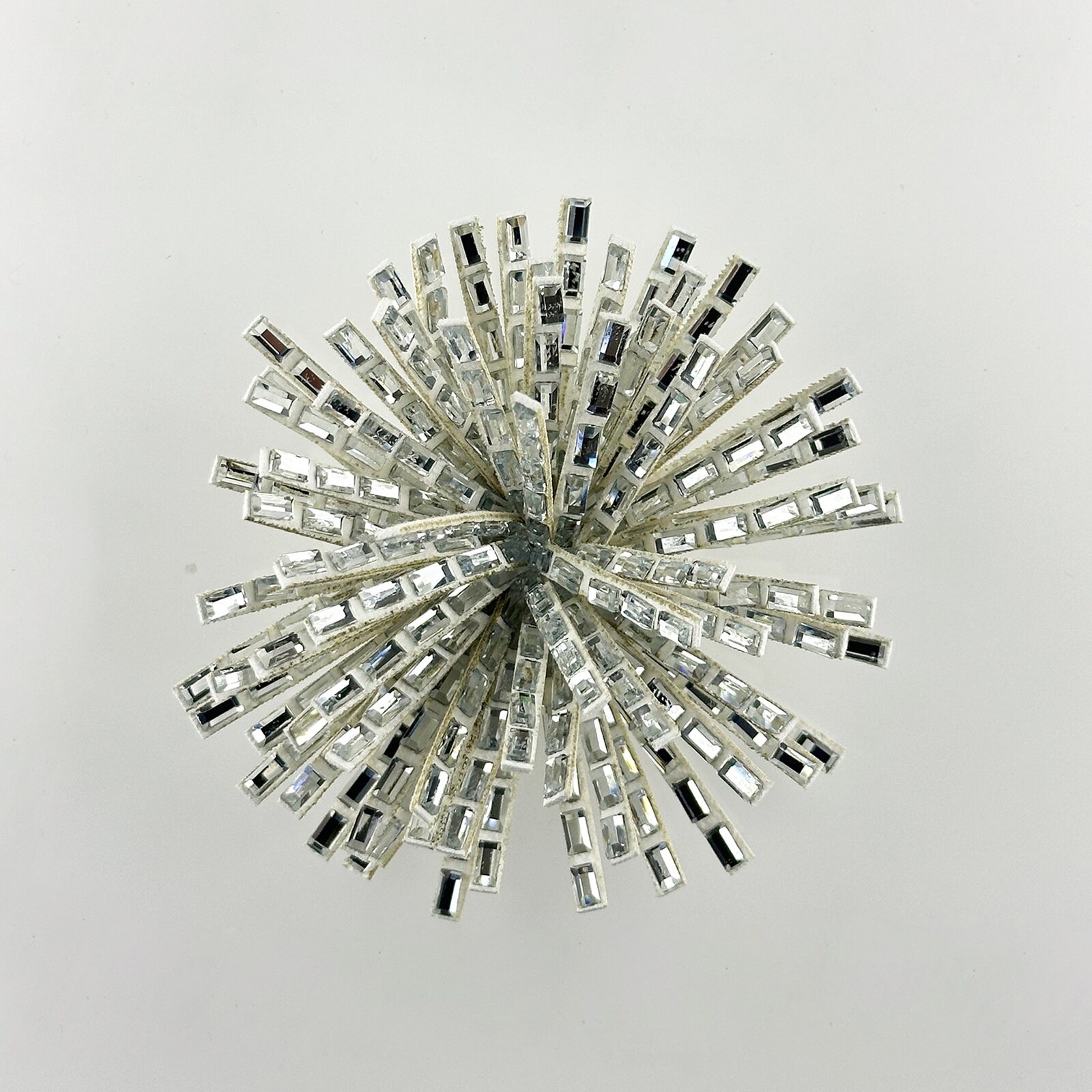

Sample variant — custom motifs, sizes and elements available.样品之一 · 可定制花型、尺寸与元素组合
Diamond Flower is one of LOCACRYSTAL's main product lines — rhinestones (or any of twelve elements) built into a complete, dimensional motif. Where Crystal Mesh and Diamond Lace are continuous base materials a buyer cuts and applies, Diamond Flower arrives as a finished decorative piece, ready to attach. The 3D multi-layer form is the differentiator: it reads as a sculpted object, not as flat trim laid on a surface.
钻花是乐卡主力产品线之一 —— 把水钻（或 12 元素中任意材质）做成一片完整、立体的图案件。水钻网片、水钻条是客户自己刀切再贴的连续基材；钻花则是一片可直接装上去的成品装饰。它的差异点就是 3D 多层立体结构：看起来像一件被塑形过的物件，而不是平铺在表面的辅料。
Each piece is built through a four-step craft — pattern design, laser cutting, 3D heat-press forming, and hand-set stones by an in-house team of more than fifty craftspeople. It is finished as Hot Fix (adhesive backing) or Sew On (stitched tabs). Motif sizes are custom, from small 3–5 cm accents to 20+ cm bodice and back-panel pieces. All materials are AAA-grade, sourced from leading domestic Chinese suppliers.
每一片都经过四道工艺 —— 图案设计、激光切割、3D 热压成型，再由 50+ 人的自有手工团队嵌钻。背面做烫钻款（背胶）或缝纫款（固定耳）。图案尺寸按客户需求定，小到 3–5 cm 装饰，大到 20+ cm 婚纱身片、背片。所用全部材料均为国产 AAA 级品质。
Three things that define it
3D form
立体形态
A multi-layer sculptural shape formed under heat-press — the piece carries depth and catches light from multiple angles, unlike a flat applied trim. (See pages 04–05.)
热压成型的立体多层结构 —— 带厚度、多角度反光，和平面辅料不同。（见第 04–05 页）
Hand-set craft
手工嵌钻
A 50+ craftsperson team sets additional stones between two machine stages — the step a machine cannot one-shot, and the source of the motif's density.
50+ 人团队在两道机器工序之间补嵌水钻 —— 机器一步做不了的环节，也是图案密度的来源。
Finished & custom
成品 · 定制
Arrives complete in a custom motif and size, finished Hot Fix or Sew On. OEM (your design) or ODM (from our pattern library) both supported.
按定制花型与尺寸交付成品，烫钻或缝纫两选。OEM 来图、ODM 用自有图案库均可。
Common buyer misreads
Misread · 误读
Diamond Flower is just a flat patch.
It is not. The key differentiator is the 3D multi-layer sculptural form — the laser-cut shape is heat-pressed into depth, then hand-set with stones. A flat patch lies on the surface; a Diamond Flower motif reads as a dimensional object.
不是。核心差异点是 3D 多层立体结构 —— 激光切出的形状经热压压出厚度，再手工嵌钻。平面贴片是贴在表面上的；钻花是一片有立体感的物件。
Misread · 误读
Diamond Flower is the same kind of product as Crystal Mesh or Diamond Lace.
Different category. Crystal Mesh and Diamond Lace are continuous-format base materials — a flat mesh or an adhesive trim, supplied by sheet or roll, that a buyer cuts and applies. Diamond Flower is a finished motif: a complete 3D piece ready to attach.
They are the same motif with two finishing options. Hot Fix carries an adhesive backing applied under heat; Sew On carries stitched tabs. The motif and its 3D form are identical — only the back-of-piece finish differs, chosen at order time.
是同一片图案的两种背面处理。烫钻款背面做背胶、加热贴合；缝纫款带固定耳缝制。图案和 3D 形态完全一样，只是背面处理不同，下单时选定。
Also known as · 别名
Rhinestone Applique · Rhinestone Bodice Applique · Sew-On Rhinestone Motif · 3D Rhinestone Patch · 3D Rhinestone Flower · Crystal Motif · Beaded Applique · Sculptural Rhinestone Patch · 立体钻花 · 钻花贴 · 钻花装饰 · 饰品花型 · 鞋花 · 花子 · 镶钻鞋花 · 头饰花
04 · The four-step craft · 四道工艺
The signature page
Four steps machines cannot one-shot.
四道工艺 · 机器无法一步做完
Diamond Flower is the LOCACRYSTAL line that cannot be one-shot machined. The laser, the heat-press and the 50+ handcraft team each carry a step the others cannot — and the sequence in which they run is what gives the piece its 3D character.

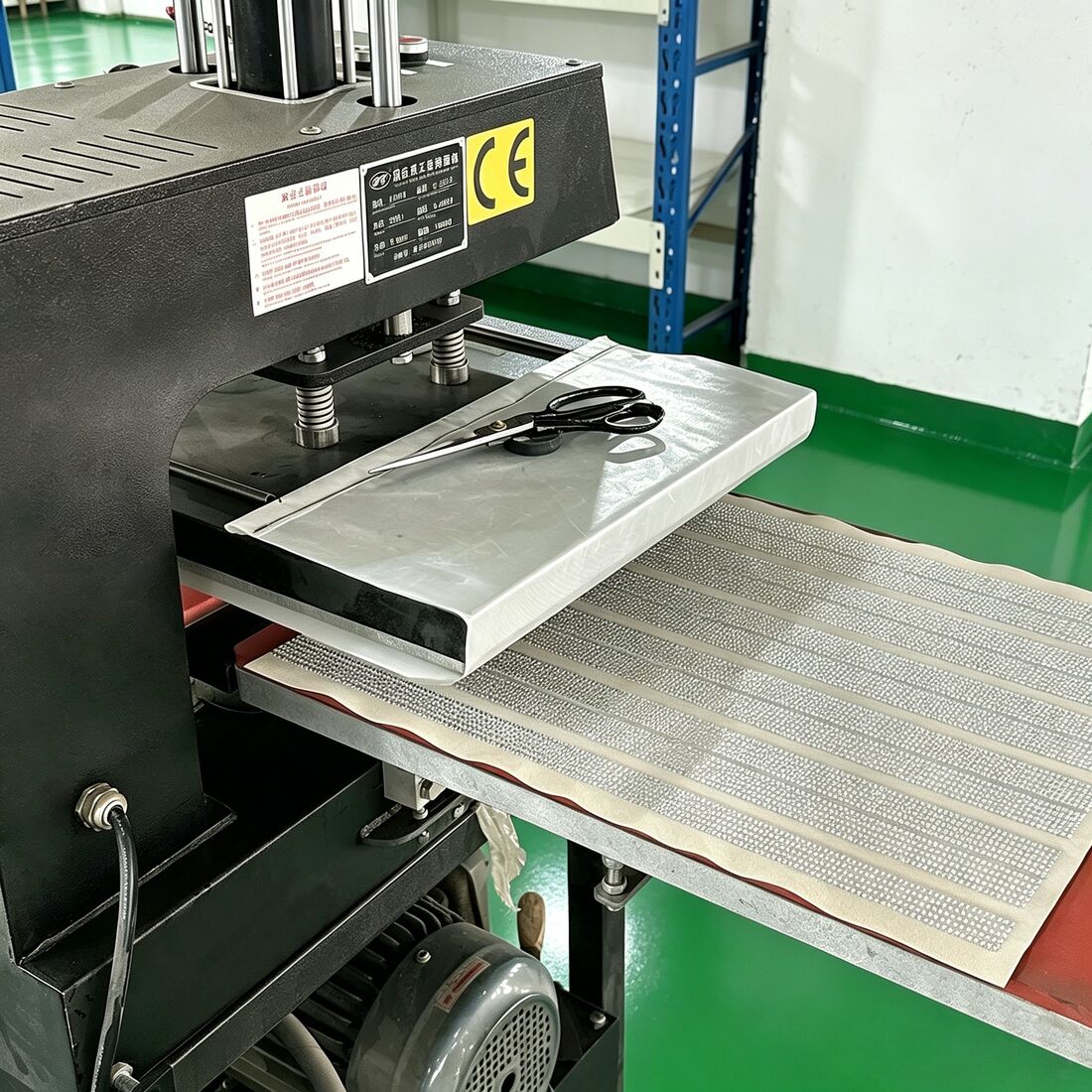

3D heat-press station — the stage that gives flat shapes their dimensional form.3D 热压工位 · 把平面形状压出立体的关键工序
Step · 工序
What happens · 做什么
1 · Pattern design 图案设计
The motif is drawn to the order spec from LOCACRYSTAL's pattern library and in-house mold workshop, then matched to molds that already know how a shape behaves under heat-press.从自有图案库与模具车间按订单出图，匹配已知"压出来好看"的模具。
2 · Laser cutting 激光切割
Base shapes are laser-cut from a rhinestone-mesh sheet using the in-house molds and patterns — clean, repeatable outlines for every layer of the motif.用自有模具与图案，从水钻网片上激光切出基础形状，每一层轮廓干净、可复制。
3 · 3D heat-press forming 3D 热压成型
The flat cut shapes are heat-pressed into dimensional, multi-layer form. This is the stage that turns a flat outline into a sculptural piece with depth.把平面切片热压成立体多层结构 —— 这一道把平面轮廓变成有厚度的立体件。
4 · Hand-set stones 手工嵌钻
A 50+ craftsperson team hand-sets additional stones to complete the motif, then each piece is finished with adhesive backing (Hot Fix) or sew-on tabs (Sew On).50+ 人手工团队补嵌水钻完成图案，再做背胶（烫钻款）或固定耳（缝纫款）背面处理。
Why the order matters · 顺序为什么重要
Hand-set sits between two machine stages.
The hand-set stage runs after 3D forming, not before — so the craftsperson sets stones onto a piece that already has its dimensional shape. That sequence, with hand work between machine stages, is what no single machine can reproduce in one shot.
手工嵌钻在 3D 成型之后做，不是之前 —— 工人是在已经立体的件上补钻。"手工夹在两道机器工序中间"这个顺序，正是单台机器一步做不出来的。
05 · 3D form · 立体形态与多层结构
The differentiator
Why multi-layer, why depth.
为什么是多层 · 为什么要立体
The 3D heat-press stage is what separates Diamond Flower from a flat patch. The motif gains real depth and a layered build — so it catches light from several angles and reads as part of the garment rather than as something laid on top.
3D 热压这一道，是钻花和平面贴片的分界线。图案有了真实的厚度和多层结构 —— 能从多个角度反光，看起来像长在衣服上，而不是贴在表面。
What the 3D form does
Catches light from multiple angles: a flat trim returns light from one plane; a heat-pressed multi-layer motif reflects from several, so it reads brighter and more alive on a moving garment.
Reads as part of the piece: the depth makes the motif look sculpted into the bodice or vamp, not stuck on — the quality bridal and evening-wear buyers ask for.
Holds layered detail: petals, wings and geometric forms can sit at different heights, so a single motif carries foreground and background within one piece.
多角度反光：平面辅料只在一个面反光；热压多层图案在多个面反光，在动态衣物上更亮、更"活"。
像长在件上：厚度让图案像被塑进身片或鞋面，而不是贴上去 —— 这是婚纱、晚装客户要的质感。
承载分层细节：花瓣、翅膀、几何形可以处在不同高度，一片图案里同时有前景和背景。
The trade-off · 取舍
Depth is built in step 3 and cannot be added later.
The dimensional form comes from the 3D heat-press stage on a specific mold. A motif's depth and layer structure are decided when the mold and forming are set — not adjustable after the stones are hand-set. That is why pattern design (step 1) and the mold choice frame everything downstream.
立体感来自第 3 道 3D 热压、依托特定模具。图案的厚度和分层结构在模具与成型阶段就定下，嵌钻之后改不了。所以第 1 道图案设计与选模，框定了后面所有工序。

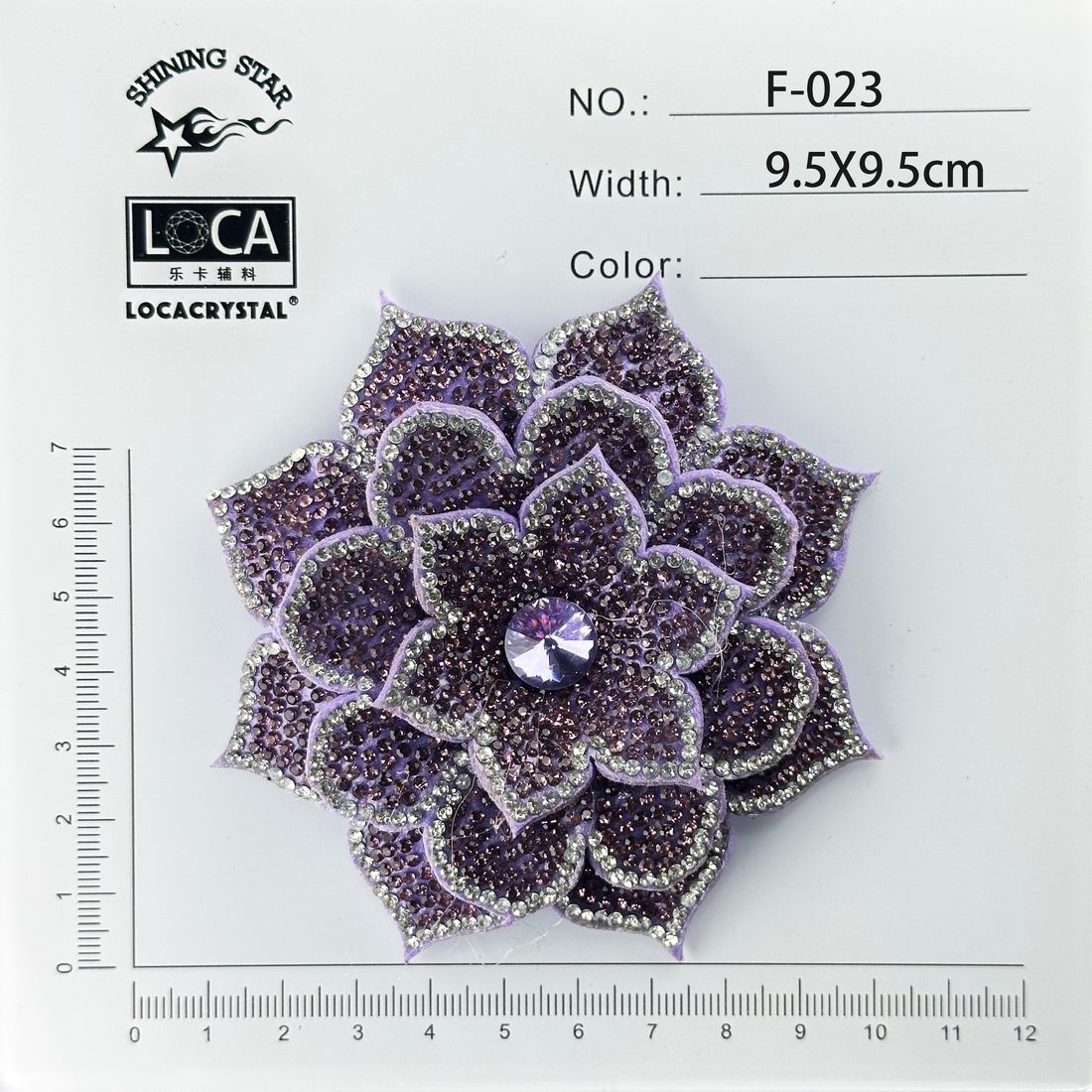

F-023 · multi-petal motif — layers set at different heights within one piece.F-023 · 多瓣花款 · 一片之内多层不同高度
06 · Motif library · 花型库
The pattern library
A library of motifs to start from.
一个可以起步的花型库
Buyers commissioning a new motif do not start from zero. LOCACRYSTAL's F-coded pattern library already holds flowers, butterflies, bows and geometric forms — each one a starting point for a custom size, colour and element mix.
客户来定新图案，不是从零开始。乐卡的 F 货号图案库里已有花型、蝴蝶、蝴蝶结、几何形 —— 每一个都是可以改尺寸、改颜色、改元素的起点。
F-013 · Floral
Pink daisy
粉色雏菊款
A soft, rounded daisy motif — a medium accent that works as a focal point without overpowering the garment.
柔和圆润的雏菊图案 —— 中等尺寸焦点，不喧宾夺主。
F-013 · pink daisy — motif size, colour and elements all customisable.F-013 · 粉色雏菊 · 尺寸/颜色/元素均可定制
F-039 · Butterfly
Purple butterfly
紫色蝴蝶款
A winged motif where the 3D form reads strongest — the wings sit at different heights, catching light as the garment moves.
立体感最强的翅膀图案 —— 双翼处于不同高度，随衣物动态反光。

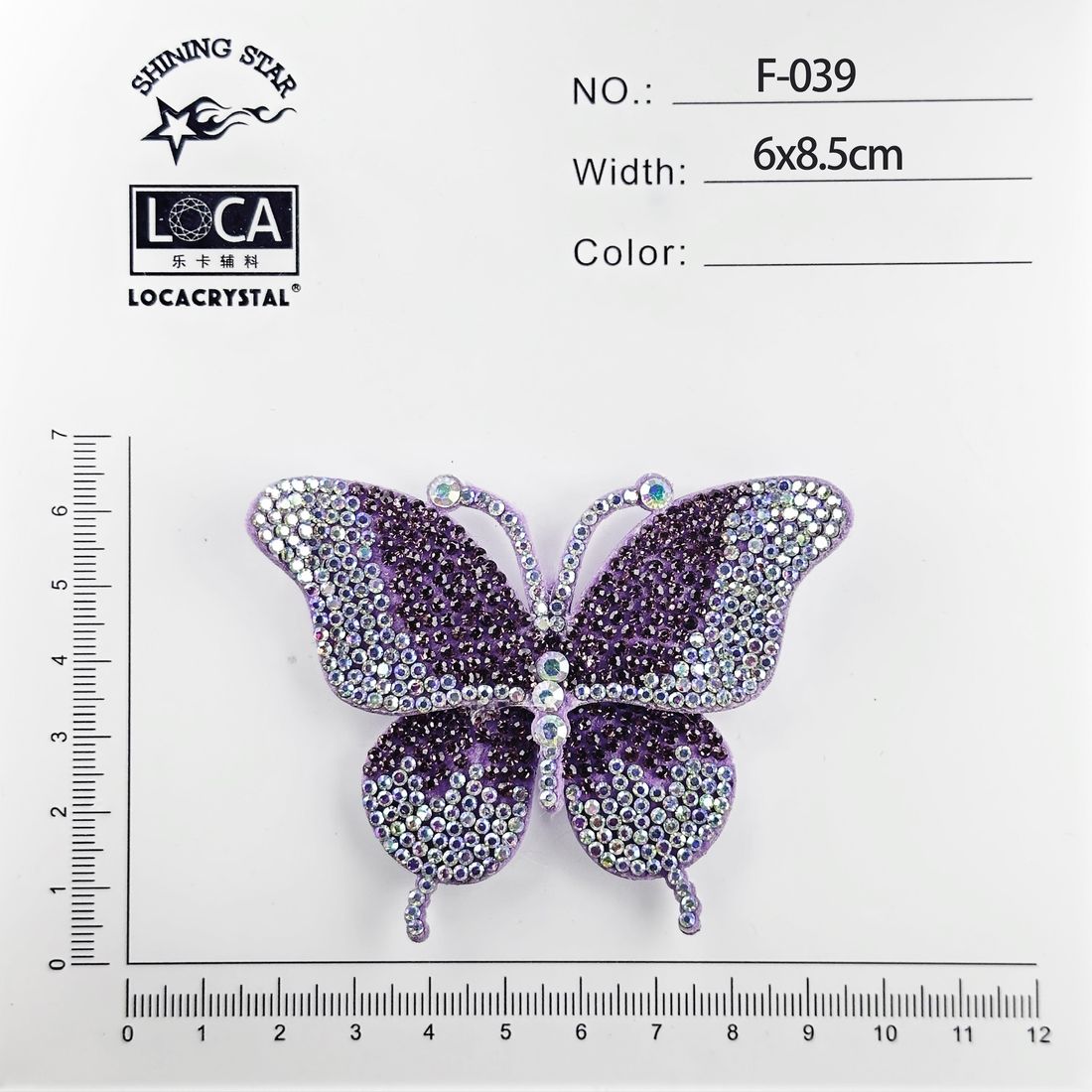

F-039 · purple butterfly — layered wings show the heat-press depth.F-039 · 紫色蝴蝶 · 分层双翼体现热压立体感
F-001 · Bow
Red bow
红色蝴蝶结款
A bow motif mixing rhinestones with metallic-stripe elements — a compact, statement accent for fronts and hair pieces.
水钻 + 金属条元素混排的蝴蝶结 —— 紧凑的点睛件，用于前胸或发饰。

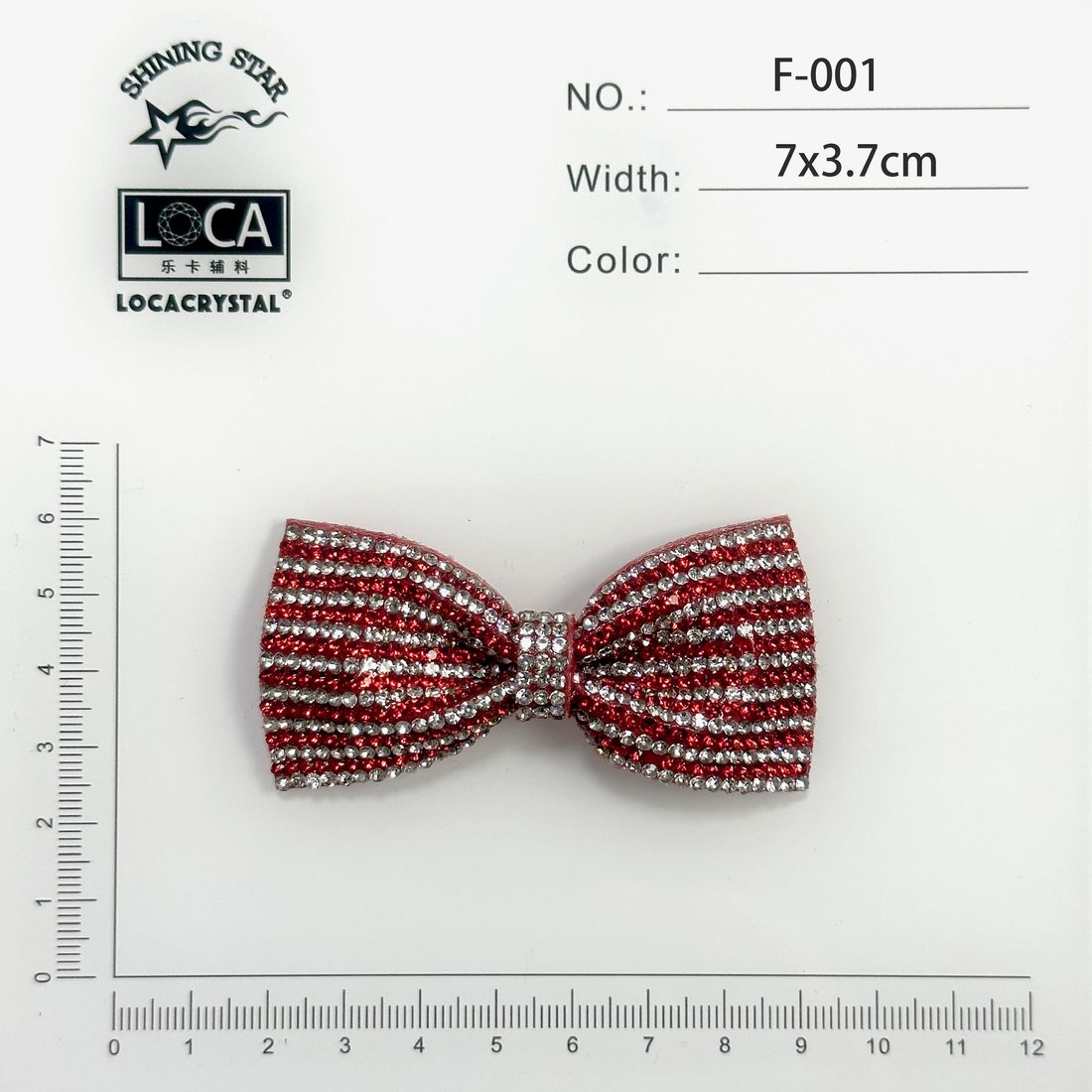

F-001 · red bow — a multi-element mix within one motif.F-001 · 红色蝴蝶结 · 一片之内多元素混排

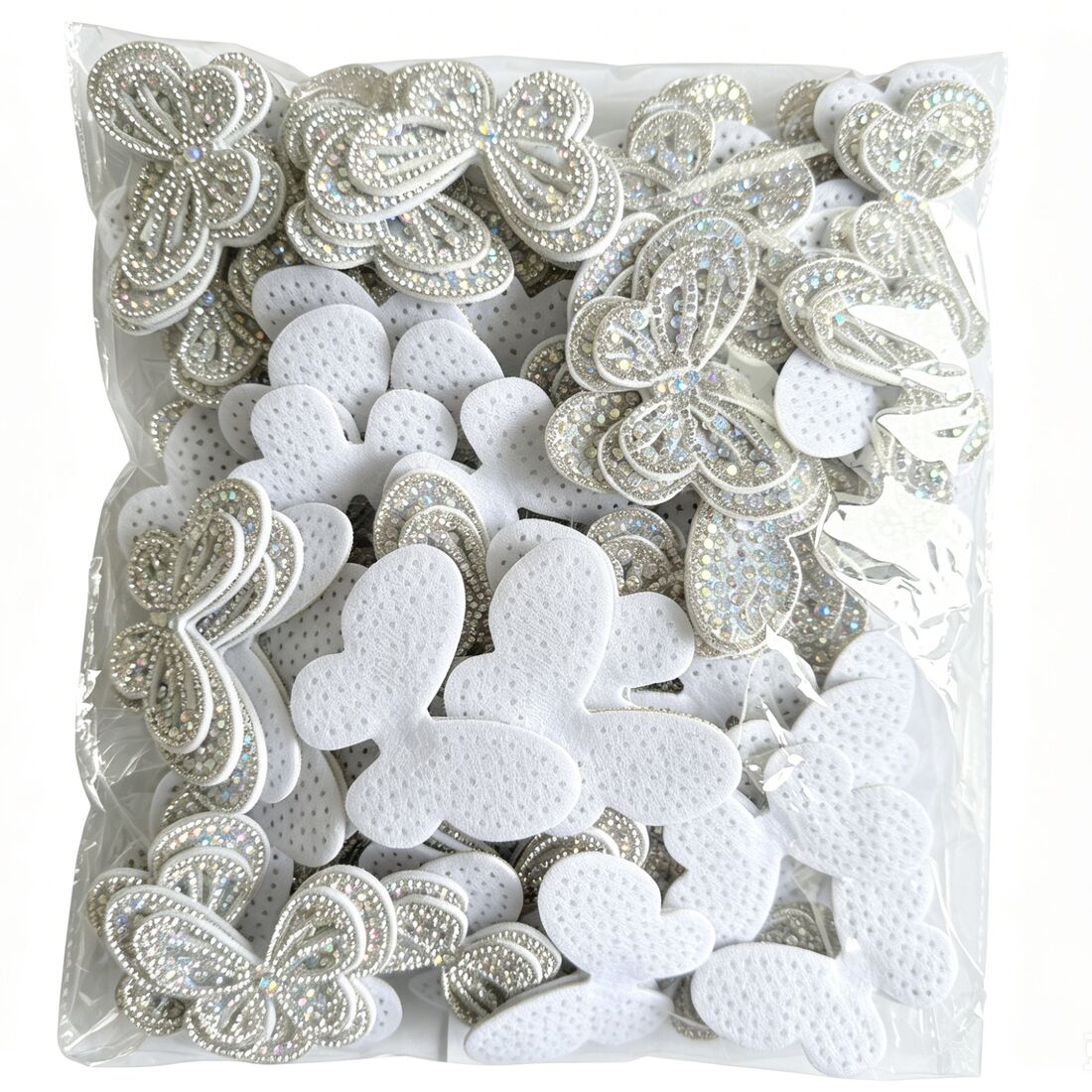

A single motif, run in volume — library patterns scale to a production order.单款花型批量生产 · 图案库花型可放大成量产单
F-codes · 关于 F 货号
An F-code is a starting point, not a fixed SKU.
Each F-coded motif (F-001, F-013, F-039, F-023…) is a library pattern. Buyers reference an F-code, then specify a custom size, colour and element mix on top of it — or commission a fresh motif (ODM) entirely. The code anchors the conversation; the order is custom.
每个 F 货号（F-001、F-013、F-039、F-023……）是一个图案库花型。客户先引用 F 货号，再在其上指定定制尺寸、颜色与元素 —— 或干脆定全新图案（ODM）。货号是沟通的锚点，订单本身是定制的。
07 · Element library · 12 元素材料库
The full element set
12 elements in 4 categories.
12 元素 · 4 大类
A single Diamond Flower motif can combine several of these twelve elements — the same material library that runs across the whole LOCACRYSTAL line. Four categories organise them by physical type.
Round glass — different from glass shaped rhinestone (B)
C4
Electroplated steel bead
电镀钢珠
Silver, gold, gunmetal, rose-gold finishes
D · Claw-set metalwork · 爪类 (2)
D1
Shaped claw setting
异形爪
Pre-formed claw shapes holding stones
D2
Claw chain
爪链
Continuous chain of claw-set stones
Multi-element mix · 多元素混排
The motif is where elements come together.
Unlike a single-element trim, a Diamond Flower motif is built to combine elements in one piece — pointed-back stones for brilliance, pearls for softness, claw chain for an edge. The hand-set stage is what makes this multi-element density possible.
Every Diamond Flower is custom in motif and size, but each one runs the same four-step craft. Two variables sit on every PO: the motif size, and the back-of-piece finishing — Hot Fix or Sew On.
每一片钻花的图案与尺寸都按需定制，但都走同一套四道工艺。每张 PO 上有两个变量：图案尺寸，以及背面处理 —— 烫钻款还是缝纫款。
Bridal bodices · statement back panels · gown motifs
尺寸按图案与款式定制；上表为常用区间，具体以打样确认。· Sizes are custom to the motif — figures above are common bands, confirmed per sample.
Finishing — Hot Fix vs Sew On
Hot Fix烫钻款 · 背胶
An adhesive backing applied under heat — an iron or heat-press bonds the motif to the carrier. The choice for garment and footwear lines that already run a press.背面做背胶，用熨斗或热压机加热贴合。适合本就有热压产线的服装、鞋类客户。
Sew On缝纫款 · 固定耳
Stitched tabs let the motif be sewn into the construction. Used on bridal, evening wear and shoe uppers where heat would mark the material or where stitching is preferred for hold.带固定耳，可缝进工序。用于婚纱、晚装、鞋面 —— 材料怕热，或更倾向缝制固定的场景。
Specify on every PO · 每张 PO 必写
Size and finishing are fields, not defaults.
A Diamond Flower order needs the motif (or F-code), the size, and the finishing — Hot Fix or Sew On — named on the PO. The same motif ships either way; a missing finishing field stops the back-of-piece stage.
钻花订单要在 PO 上写清图案（或 F 货号）、尺寸、背面处理 —— 烫钻款或缝纫款。同一图案两种都能做；缺背面处理字段会卡住后段工序。
09 · Applications · 应用与端用方向
Where it goes
From bodice motifs to bridal headwear.
从婚纱身片到新娘头饰
Diamond Flower is the LOCACRYSTAL line buyers reach for when the decoration itself needs to read as a complete object — a statement motif, not a continuous trim. Below: typical end-use directions.
A · Bridal & evening wear婚纱 / 晚装身片Large 20+ cm appliques on bridal bodices, evening gowns and statement back panels. The 3D form catches light from multiple angles — reads as part of the dress, not added trim.
B · Garment designers服装装饰Stitched or hot-fixed onto jacket lapels, dress fronts, denim patches and statement T-shirts. Medium 5–12 cm motifs work as focal points without overpowering the garment.
C · Statement footwear鞋面 / 装饰拖鞋Applied to shoe vamps for evening shoes, decorative slippers and bridal heels. Sew-on tabs let shoe factories integrate the motif into the upper construction.
D · Hair & headwear头饰 / 婚纱发饰Tiaras, headbands, bridal hair vines and statement combs. Small 3–5 cm motifs cluster into custom headwear pieces.
E · Jewelry workshops饰品厂 · 胸针 / 戏饰The centrepiece of statement brooches and costume jewelry. The hand-set stage gives each finished piece the density of a custom jewelry item.
F · Accessory wholesale配件批发 · 定制图案Wholesalers commission Diamond Flower in their own motifs and sizes — adding a distinctive applique line to a catalogue that otherwise carries continuous trims and meshes.

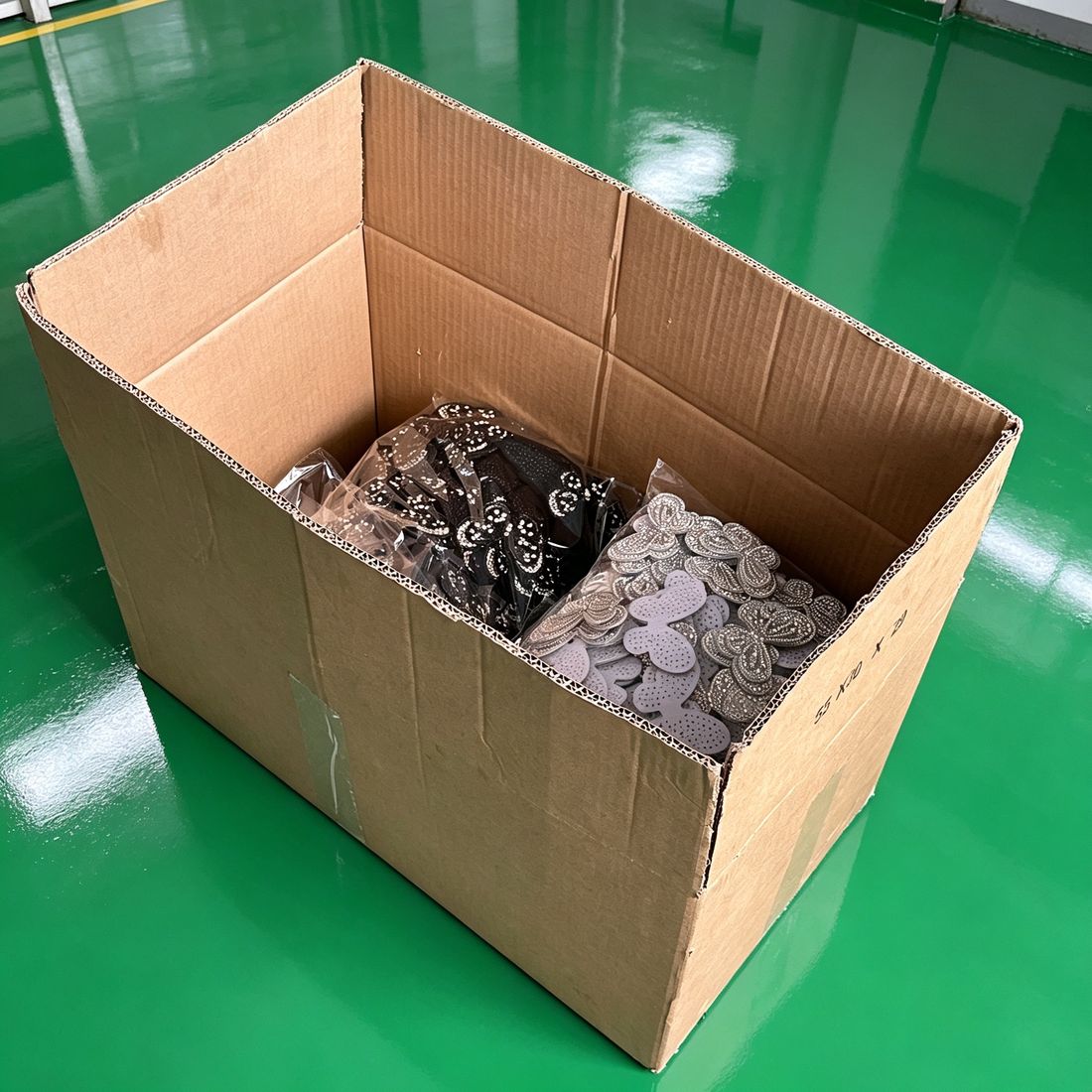

Finished motifs, cartoned for export — a custom applique line ships at volume.成品花型整箱出口 · 定制装饰件线也能放量
10 · Storage · 储存与处理
Before, during, after
Storage & handling.
储存与处理
Diamond Flower ships as a finished motif. Three storage habits keep the 3D form, the adhesive backing and the stone face in the condition they left the factory in.
钻花以成品图案件出厂。三个储存习惯能让立体形态、背胶和钻面保持出厂状态。
Storage
Temperature: 15–28°C. Above 35°C, the hot-fix adhesive backing softens and the 3D form can flatten under stacking weight.
Humidity: 40–60% RH. Above 70% RH, adhesive backing can lose tack; below 30% RH, electrostatic build-up attracts dust onto the stone face.
Light: keep cartons closed. Silver-plated steel bead elements oxidise under prolonged UV exposure.
Stacking: store motifs flat in shallow layers — do not compress the 3D form under heavy stacking.
Wipe the carrier clean and dry before bonding — dust and oil prevent full adhesion.
For Hot Fix, verify press temperature on the exact carrier first — and protect the 3D form so the press does not flatten it.
For Sew On, stitch through the tabs, not through the stone field, to keep the motif's form intact.
贴合前把载体擦干净擦干 —— 灰尘和油渍会直接影响粘合。
烫钻款先在大货载体上验证热压温度 —— 同时保护立体结构，别被压扁。
缝纫款从固定耳缝，不要穿过钻面，保持图案形态完整。
End-consumer care
Wash inside-out, cold water, on a delicate cycle. Avoid dryers.
Do not iron directly on the rhinestone face or the 3D motif.
Store finished pieces flat to avoid crushing the dimensional form.
反面冷水洗、轻柔模式，避免烘干。
不能直接熨钻面或立体图案。
成品平放存放，避免压坏立体结构。
11 · Troubleshoot · 常见问题
Six failures we see most
Common problems & fixes.
常见问题与处理
Six failure patterns that account for the majority of buyer support tickets — each with the cause behind it and the production-floor fix.
买家支持工单里出现频率最高的 6 种失效模式，每一条都附上根因和产线处理方案。
The 3D form flattens after shipping or application.
立体结构在运输或贴合后被压扁
Cause: heavy stacking in storage, or excessive press pressure on a Hot Fix piece.
根因：储存时重压堆放，或烫钻贴合时压力过大。
Fix: store flat in shallow layers; for Hot Fix, protect the form during pressing and verify pressure on a test piece first.
处理：平放分浅层；烫钻贴合时保护立体结构，先在试件上验证压力。
Hot Fix backing does not bond.
烫钻款贴不牢
Cause: insufficient temperature/time/pressure, or the carrier is not heat-bondable.
根因：温度/时间/压力不足，或载体不耐热压。
Fix: verify press parameters on the actual carrier; if it still fails or the carrier is heat-sensitive, switch to the Sew On finish.
处理：在大货载体上验证热压参数；仍失败或载体怕热则改用缝纫款。
Hand-set stones loosen at the edges of the motif.
图案边缘手工嵌的钻松动
Cause: stress on edge stones during shipping, or stitching/pressing through the stone field instead of the tabs.
根因：运输中边缘钻受力，或缝/压时穿过钻面而非固定耳。
Fix: stitch through the sew-on tabs only; ship motifs flat and protected; report a batch for re-set if edge density is short.
处理：只从固定耳缝；平放保护运输；边缘密度不足的批次反馈返补。
Colour variation between motifs in one order.
同一订单不同图案件之间颜色不一致
Cause: stones drawn from different production batches across a long hand-set run.
根因：较长手工排产中混入了不同生产批次的钻。
Fix: on reorders, specify "same batch as previous PO" in writing; on new orders, request a colour-cluster confirmation sample.
处理：复购时书面注明"沿用上批次"；新单先要颜色一致性样品确认。
Steel bead elements darken in storage.
电镀钢珠在储存中变暗
Cause: silver plating oxidises under air, moisture or UV.
根因：银电镀在空气、湿气、UV 下氧化。
Fix: store in sealed mylar with desiccant; for long shelf-life, specify gold or gunmetal plating.
处理：密封 mylar 袋 + 干燥剂；长期储存改指定金或枪色电镀。
Bulk motif looks different from the sample.
大货图案看起来与样品不同
Cause: sample and bulk PO did not reference the same F-code, size and finishing.
根因：样品和大货 PO 上的 F 货号、尺寸、背面处理不一致。
Fix: reference the F-code, motif size and finishing on every PO. "F-013 · 8 cm · Sew On" is unambiguous; "rhinestone flower" alone is not.
处理：每张 PO 写清 F 货号、图案尺寸、背面处理。"F-013 · 8 cm · 缝纫款"无歧义；只写"钻花"不够。
12 · Capability · 工厂能力
Behind the catalog
Production capability.
工厂能力
A custom-motif line from one factory in Pujiang, Zhejiang — seventeen years of rhinestone craft, eight thousand square metres under one roof, and a 50+ handcraft team on the step machines cannot replace.
In-house production — pattern library, molds, 3D press and hand-set under one roof.自有生产 · 图案库、模具、3D 热压与手工嵌钻同在一栋厂房
50+ team
50+ 手工嵌钻团队
The hand-set stage is done by a 50+ craftsperson team in-house. Many have ten or more years on the line — long enough that hand-set rhythm and stone placement read consistently across batches.
Pattern design, laser cutting, 3D heat-press forming and hand-set stones each carry a step the others cannot. The sequence — hand work between machine stages — is what no single machine can one-shot.
The pattern library and in-house mold workshop have been refined over many seasons. A new motif starts from a library that already knows how a shape behaves under 3D heat-press.
图案库与模具车间是十几年一季季磨出来的。定新图案，是从一个已知"什么形状压出来好看"的库里开始。
8,000 m²
自有厂房
All eight LOCA lines under one roof. Buyers who order Diamond Flower with Crystal Mesh or Diamond Lace ship one container from a single address.
8 条产品线集中在同一栋厂房。钻花 + 水钻网片 + 水钻条一柜混发，发货地址同一个。
Quality philosophy · 品质哲学
Same hand-set rhythm. Motif after motif.
Diamond Flower is the line where buyers commission a motif and stay for the hand-set consistency. The same pattern library, the same mold workshop, the same 50+ team — motif after motif, season after season. Commission it once, then reorder it the same way.
Identify the motif, size, element mix and finishing that fit your project — then send a brief, and we'll send back a physical sample within the standard sampling lead-time. Trial orders start from USD 500.
