A standard 24 × 40 cm flexible mesh of pre-set stones. The base format never changes; what changes is the density, the stone type, and how those stones are combined.
一张 24 × 40 cm 的柔性钻面网片。尺寸是固定的，变量在密度、材质、与组合方式上。
A Crystal Mesh sheet is built on a thin flexible adhesive base, with rhinestones (or other elements) pre-set in a controlled grid. Buyers receive it ready to cut, ready to apply — by hot-fix press, or by peeling and pressing the 513 self-adhesive backing.
Twelve subcategories grouped in three: four single-material grids, two stacked-rhinestone builds, six mixed-material layouts.
12 个子类分成 3 组：4 个单材质钻面，2 个水钻叠装，6 个混搭布局。
Common buyer misreads
Misread · 误读
"105 × 175" is a sheet size, not a bead count.
It is a bead count. On a fixed 24 × 40 cm sheet, "105 × 175" means 105 beads along the 24cm edge and 175 beads along the 40cm edge — a total of 18,375 stones per sheet.
They are not. Hot-fix needs a heated press at 180°C; 513 is a peel-and-stick pressure-sensitive backing. They are two different substrates, ordered separately, and serve different production lines.
No. Of twelve LOCACRYSTAL subcategories, only four are single-material. Eight involve resin, ceramic, glass shapes, ABS, chain, or glass beads woven into the layout.
Every Crystal Mesh sheet sits on one of two flexible adhesive bases. The choice is set at order time, and it determines how the buyer applies the sheet downstream.
每一张水钻胶网片都依托一层柔性背胶。下单时需指定其中一种，决定客户产线如何完成贴合。
Hot-melt adhesive热熔胶背胶
A thermoplastic film bonded to the back of the mesh. Activates at 180°C with 15 seconds of pressure. Bonds permanently into fabric, leather, PU, TPU, and most synthetic substrates.
背面热熔胶膜 — 180°C 加 15 秒压力激活，永久粘合到布料、皮料、PU、TPU 等大多数合成材质。
513 self-adhesive513 双面胶背胶
A pressure-sensitive backing with a release liner. Peel and press at room temperature. Used where heat would damage the carrier (delicate fabrics, finished accessories, manual hand-application).
压敏背胶 + 离型纸 — 室温下撕揭即贴。用于不能加热的载体（细腻面料、成品配件、纯手工应用）。
How to choose
Choose hot-melt when the buyer has a heat press, the carrier tolerates 180°C, and the bond must survive washing or industrial finishing.
Choose 513 when heat is not available, the carrier is heat-sensitive, or the application is manual / craft / low-volume.
选热熔胶：客户有热压机 · 载体耐 180°C · 需要经受水洗或工业整理。
选 513：没有热源 · 载体怕热 · 手工应用或小批量场景。
Production note · 生产备注
Specify the substrate on every PO.
Hot-melt and 513 share the same SKU code in our system, separated only by substrate field. A missing or ambiguous substrate stops the production line.
热熔胶版和 513 版在我们系统里共用同一个 SKU 代码，只靠 substrate 字段区分。下单时未注明会让产线停摆，请在 PO 上明确写出。
05 · Density · 密度档
Density library
Stone size × bead count.
钻号 × 颗粒数
On a fixed 24 × 40 cm base, density is the variable. Six stone sizes (SS3.5 to SS12) carry a wide library of bead-count combinations. SS4 and SS6 alone account for multiple density grades each — the grid below shows the most-ordered combinations.
Smaller stones, denser fields. Same size, multiple densities.
Stone size and bead count move in opposite directions: smaller SS = more beads on the same sheet. But within a single stone size, the line can hold spacing tighter or looser — SS6 alone covers seven density grades, allowing buyers to fine-tune the visual weight without changing stone choice.
Match a SKU to an effect: dense continuous shimmer → SS3.5 / SS4. Distinct individual stones → SS10 / SS12.
Quote and reorder accurately: bead count is the line item on the PO. "SS6 · 108 × 180" is unambiguous; "SS6" alone is not.
Compare cost between grades: total bead count scales linearly with raw material consumption. SS3.5 (41,040 beads) costs roughly 6.8× SS12 (6,000 beads) in stone count alone.
匹配视觉效果：密集连续闪面 → SS3.5 / SS4。独立颗粒高光 → SS10 / SS12。
精准报价复购：颗粒数是 PO 上的实际下单单位。"SS6 · 108 × 180" 无歧义；只说 "SS6" 不够。
One stone type across the whole sheet. The cleanest read, the most stable cost, the easiest reorder. Where buyers go when consistency matters more than variation.
整张钻面只用一种材质。视觉最干净，单价最稳定，复购也最容易。适合一致性比变化更重要的场景。
SKU 01 · All-rhinestone
All-rhinestone mesh.
满钻胶网
The reference grade. Pure rhinestone across the full 24 × 40 cm sheet — the highest visual density per square centimetre LOCA produces.
这是参考基准款。整张钻面全为水钻，单位面积的视觉密度做到我们目前能交付的上限。

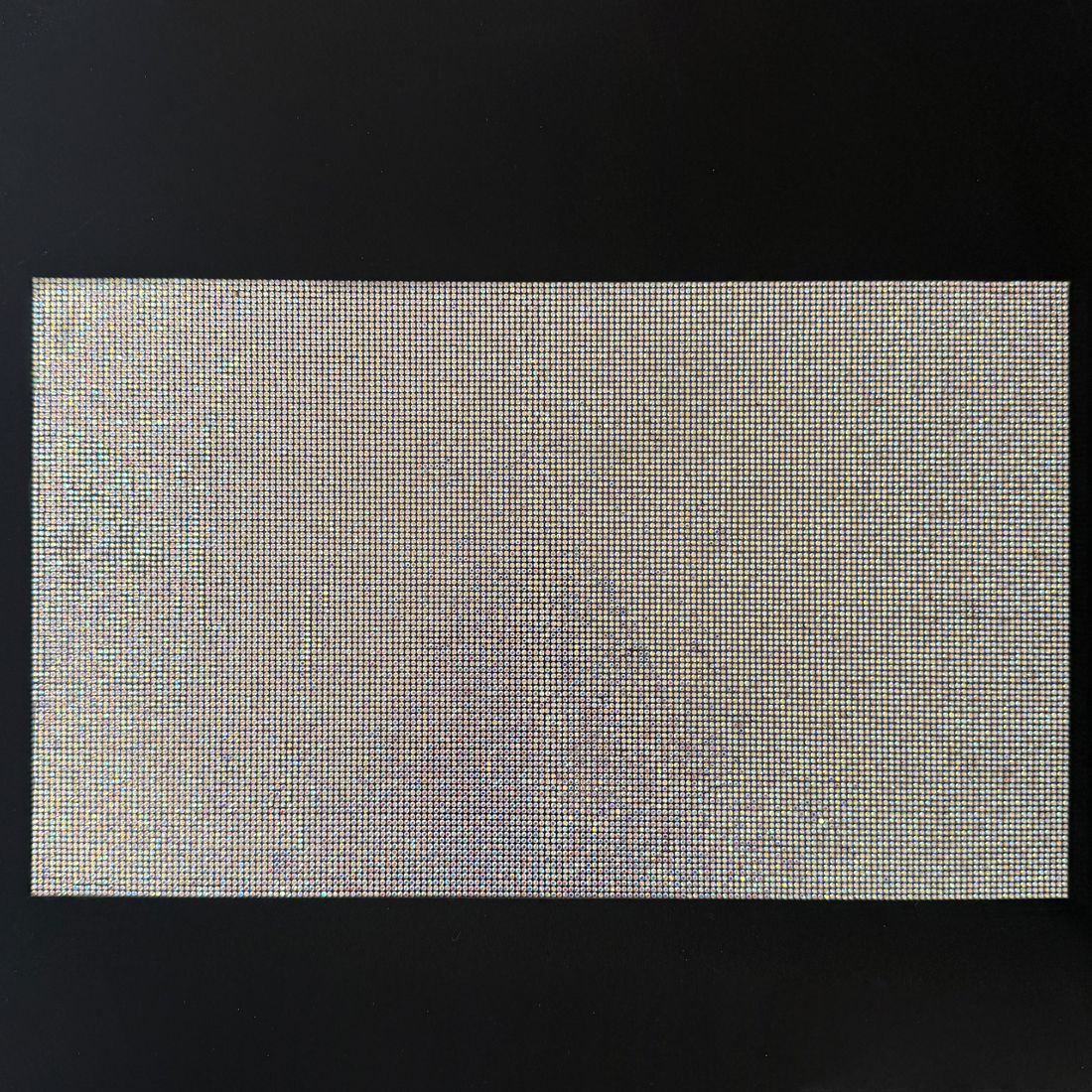

All-rhinestone mesh · single-colour full sheet满钻胶网 · 单色整张
Element材质
Rhinestone only (pointed-back or flat-back, hot-fix backing optional)单一水钻（尖底或平底 · 烫钻为已成胶款）
Density range密度范围
Full density library, SS3.5 41,040 → SS12 6,000完整密度库全开（SS3.5 41,040 颗 → SS12 6,000 颗）
Substrate基底
Hot-melt or 513 (specify on PO)热熔胶或 513 双面胶（PO 指定）
Footwear vamp inlay鞋面镶钻Cut to die-line, hot-fix to PU or fabric upper.
Bangle decoration strip手镯装饰Slit lengthwise into custom-width strips.
Bag & clutch accent手提包 / 晚宴包点缀Patch placement on leather or canvas.

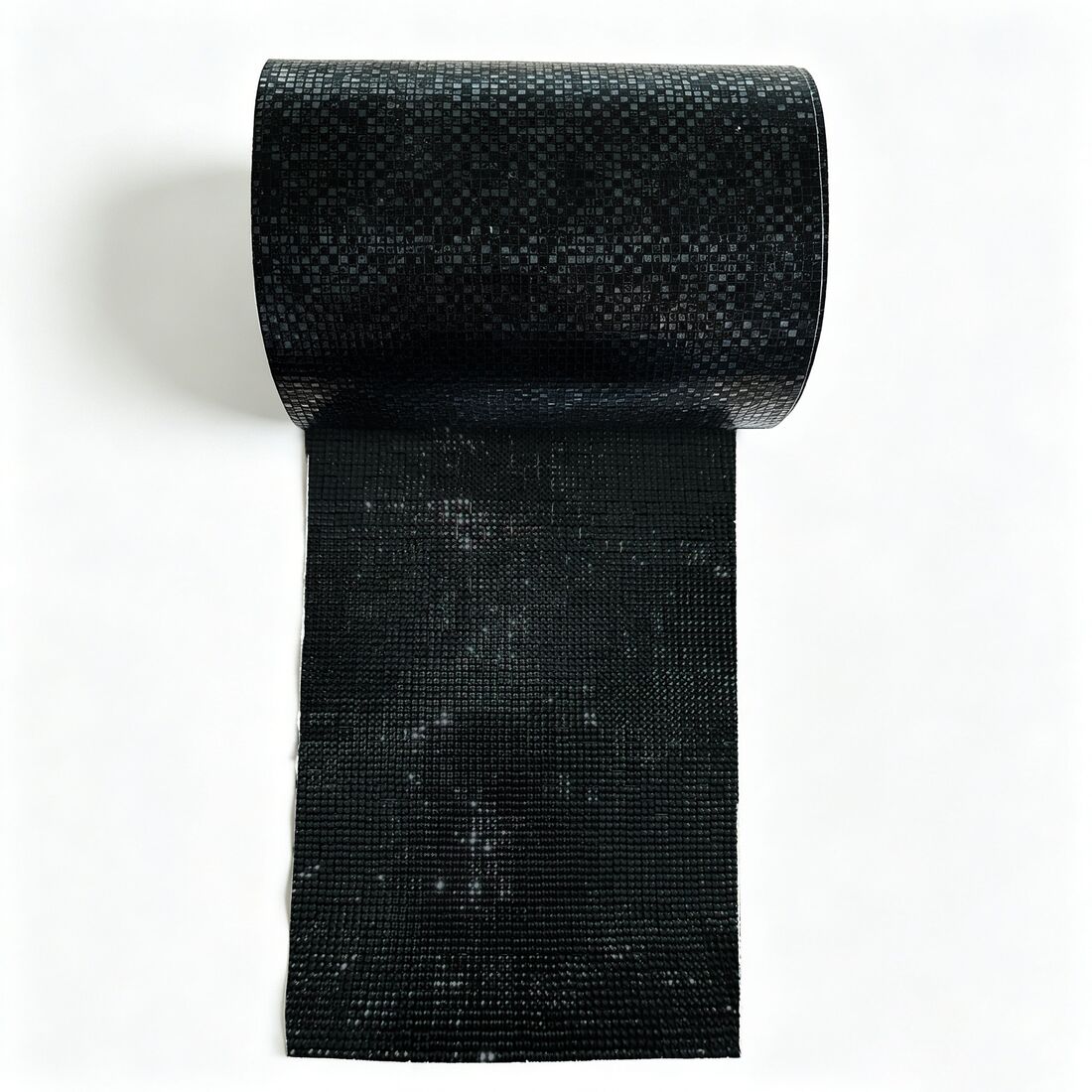

SKU 02 · All-resin
All-resin mesh.
全树脂钻胶网
Resin stones replace rhinestones across the full sheet. Warmer light, softer hand-feel, lighter weight — a common choice for footwear and bag accents where mass matters.
Resin is non-reflective compared to glass — reads as colour, not sparkle树脂相对玻璃钻不反光 — 视觉以"色彩"为主，不是"闪"
Typical use cases
Casual footwear accent休闲鞋装饰Colour blocks without glare.
Children's apparel童装Lighter weight, softer edge.
Resort & beachwear度假装 / 沙滩配饰Saturated colour over neutral fabric.
Cost-controlled OEM成本敏感型 OEMLower unit cost vs full-rhinestone equivalent.

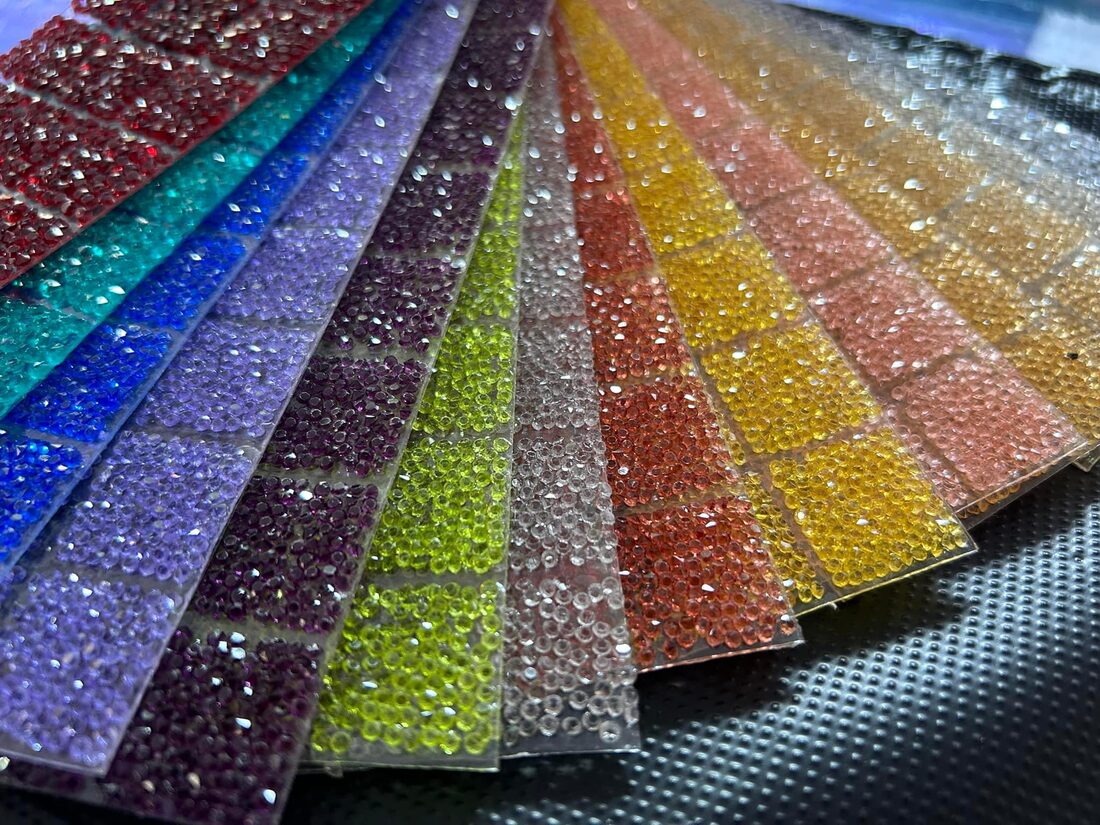

SKU 03 · All-glass
All-glass mesh.
全玻璃钻胶网
Glass-shaped rhinestones — flat-back or pointed-back sub-types — fill the entire grid. Higher refractive index than resin, with the shape variation that flat or pointed rhinestones cannot provide.
A matte alternative across the entire grid. Where glass and resin reflect light, ceramic absorbs and softens it — used when the design wants surface texture without sparkle.
Lower light return; reads as texture rather than sparkle反光弱 — 视觉以肌理为主，不是闪
Typical use cases
Minimalist eveningwear极简晚装Texture without optical noise.
Tonal accessory ranges同色系配饰Ceramic in cream / nude / black / earth.
Editorial fashion编辑级时装Matte counterpoint to glossy fabric.
Hat & millinery trim帽饰Where shine would compete with the headpiece form.
07 · Group B · 叠装组
Group B · Stacked rhinestone
Two stacked builds.
2 个水钻叠装
Rhinestone on rhinestone. A small-stone field anchored by a second (or third) layer of larger stones placed on top — three-dimensional depth, structured highlight points, a sculpted optical effect that single-layer mesh cannot reach.

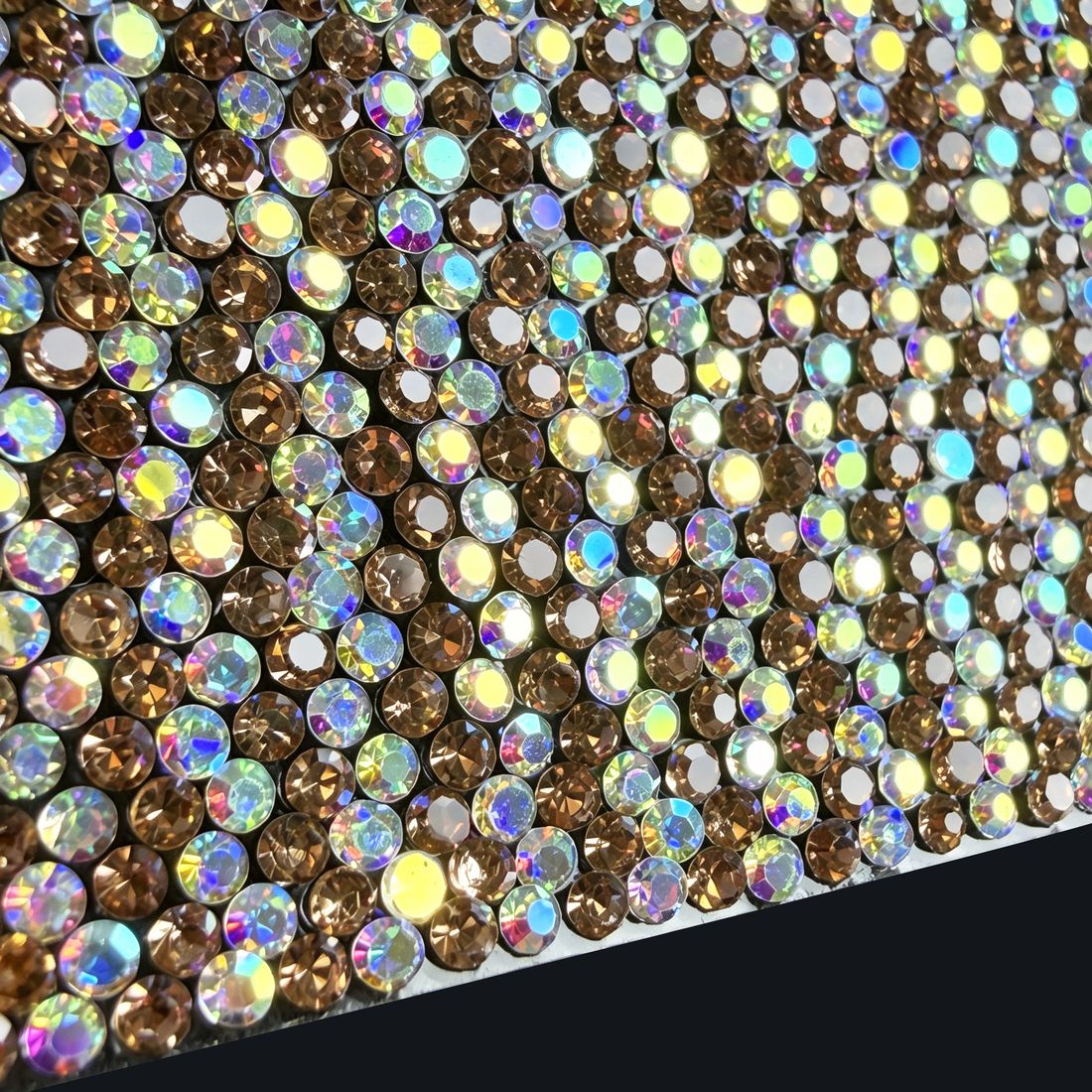

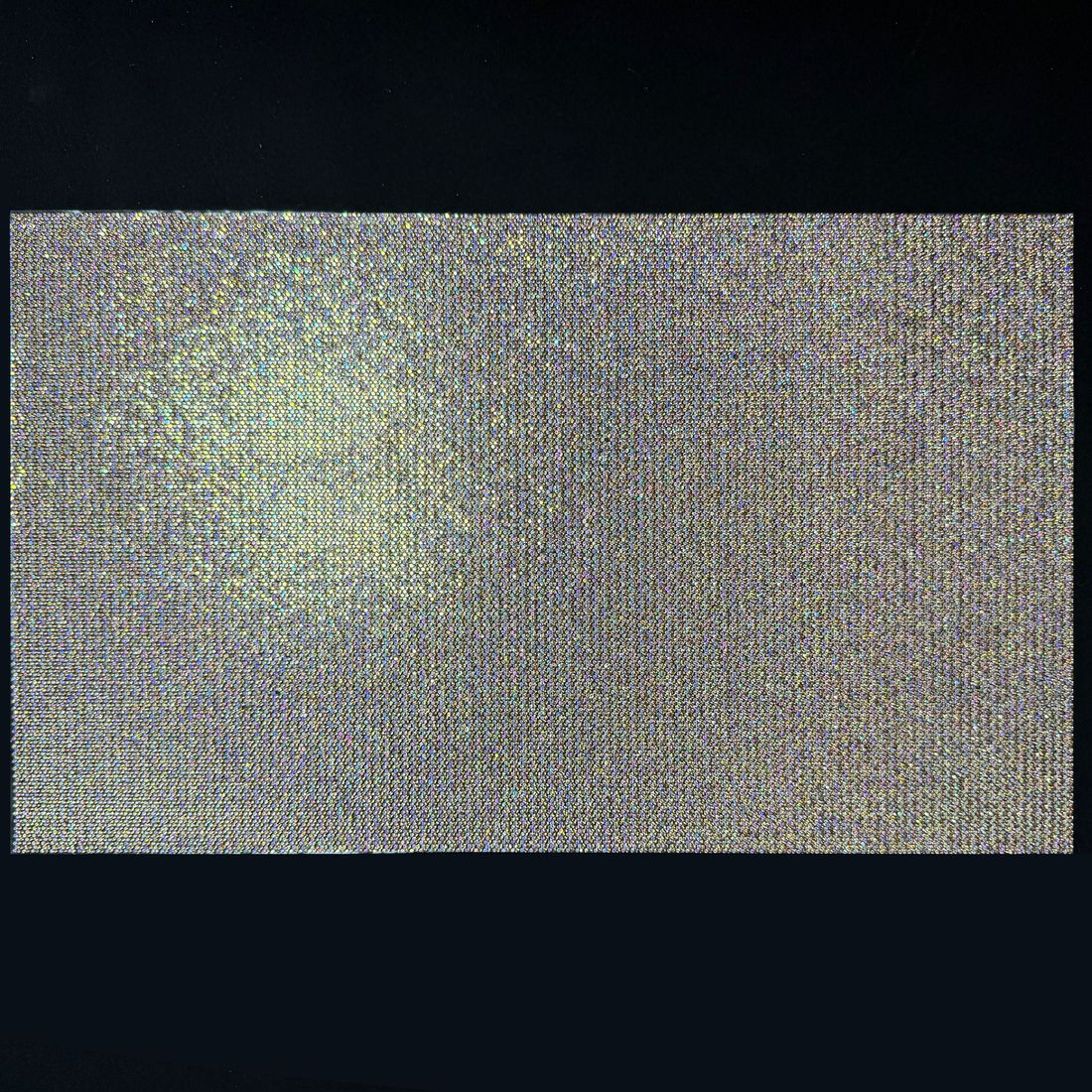

Two layers. A dense small-stone base (SS4 / SS6) carries a sparser overlay of larger stones (SS10 / SS12) at the design points — creating a low-relief field with focal highlights.

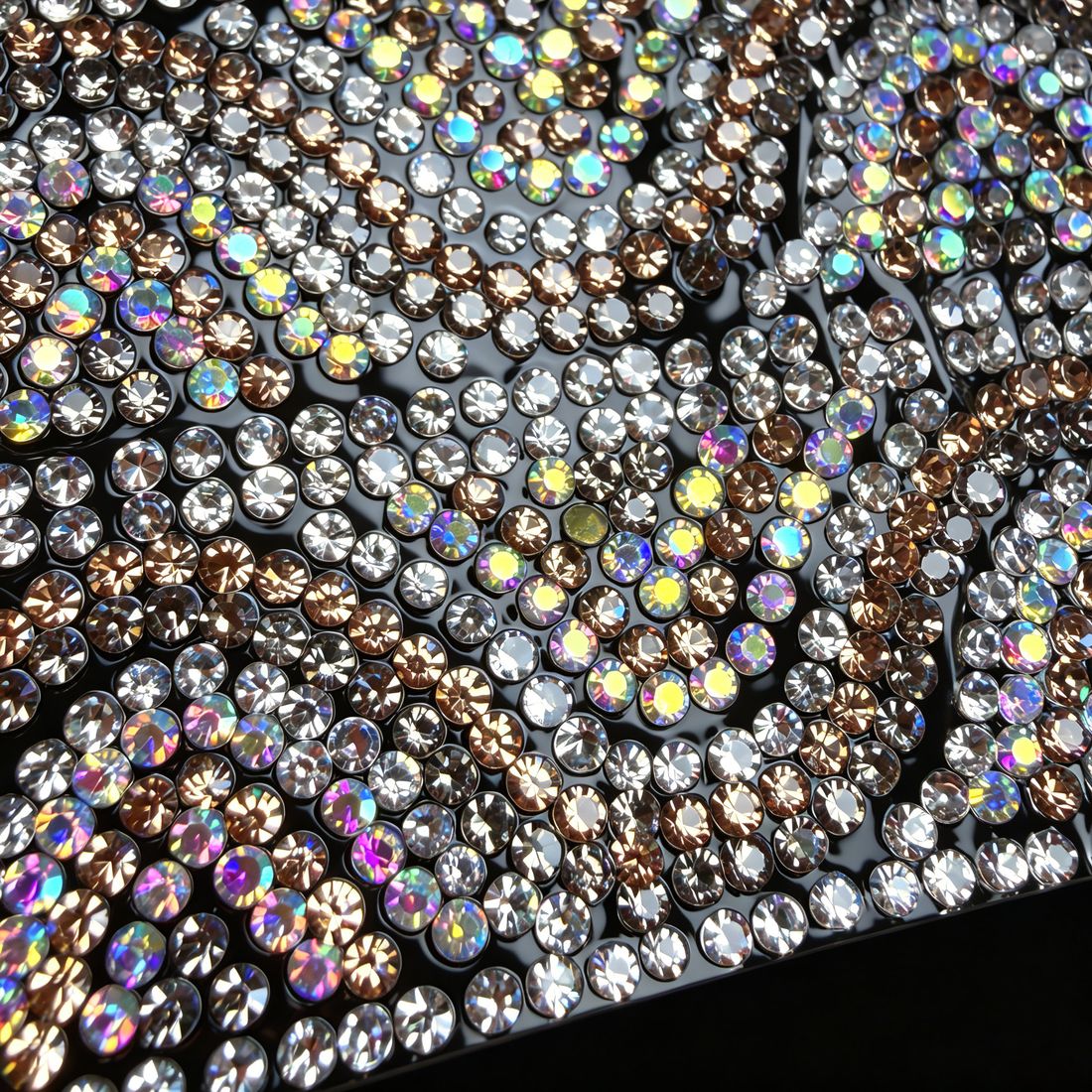

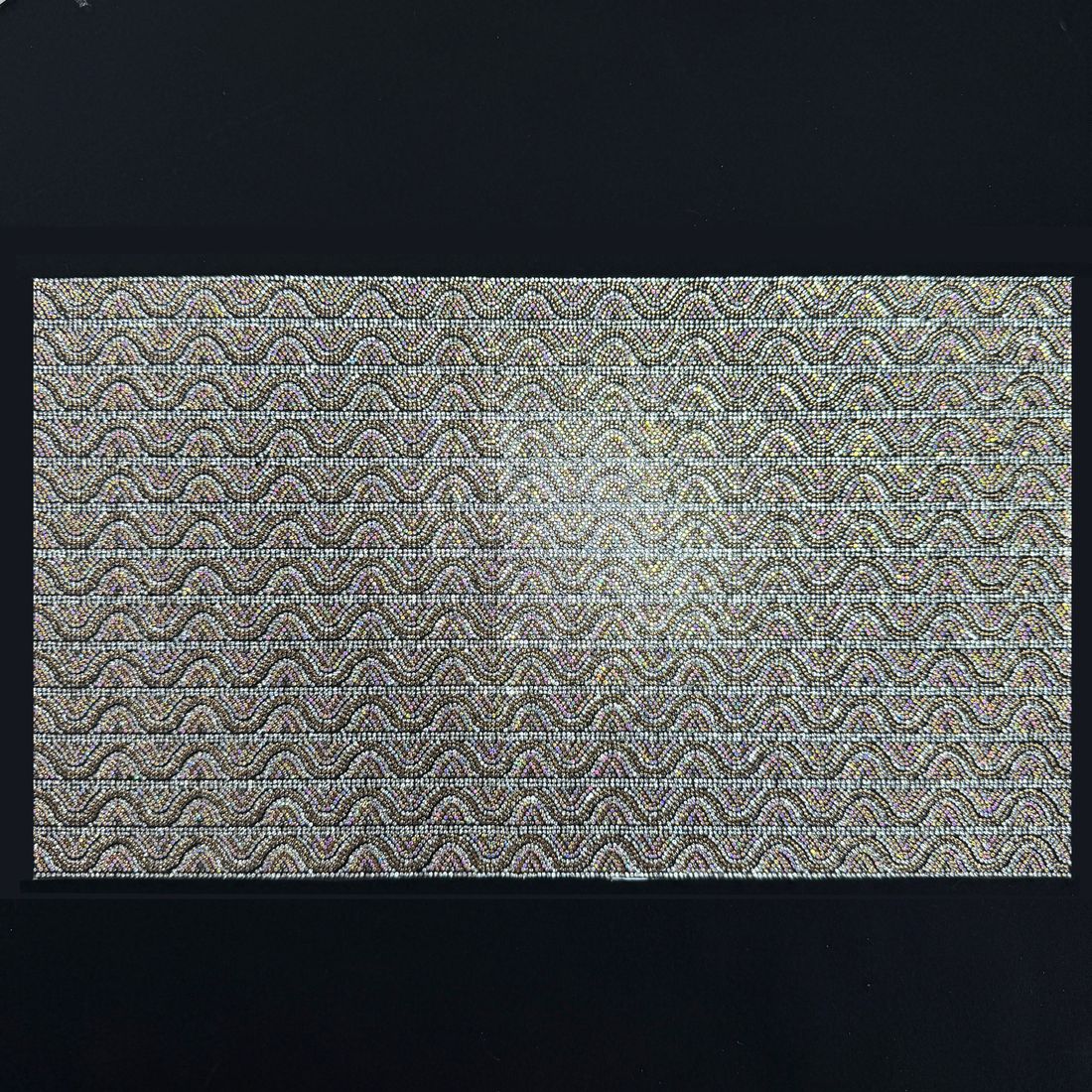

Three layers. Small base, mid-size connectors, large focal points. The most three-dimensional surface LOCA produces from rhinestone alone — used where a Crystal Mesh sheet needs to read like sculpted hardware.
Rhinestone holds the field; a second material punctuates it. Glass shapes, resin, ceramic, ABS, chain segments, or glass beads woven into the grid — each combination opens a different visual register, from soft to architectural.

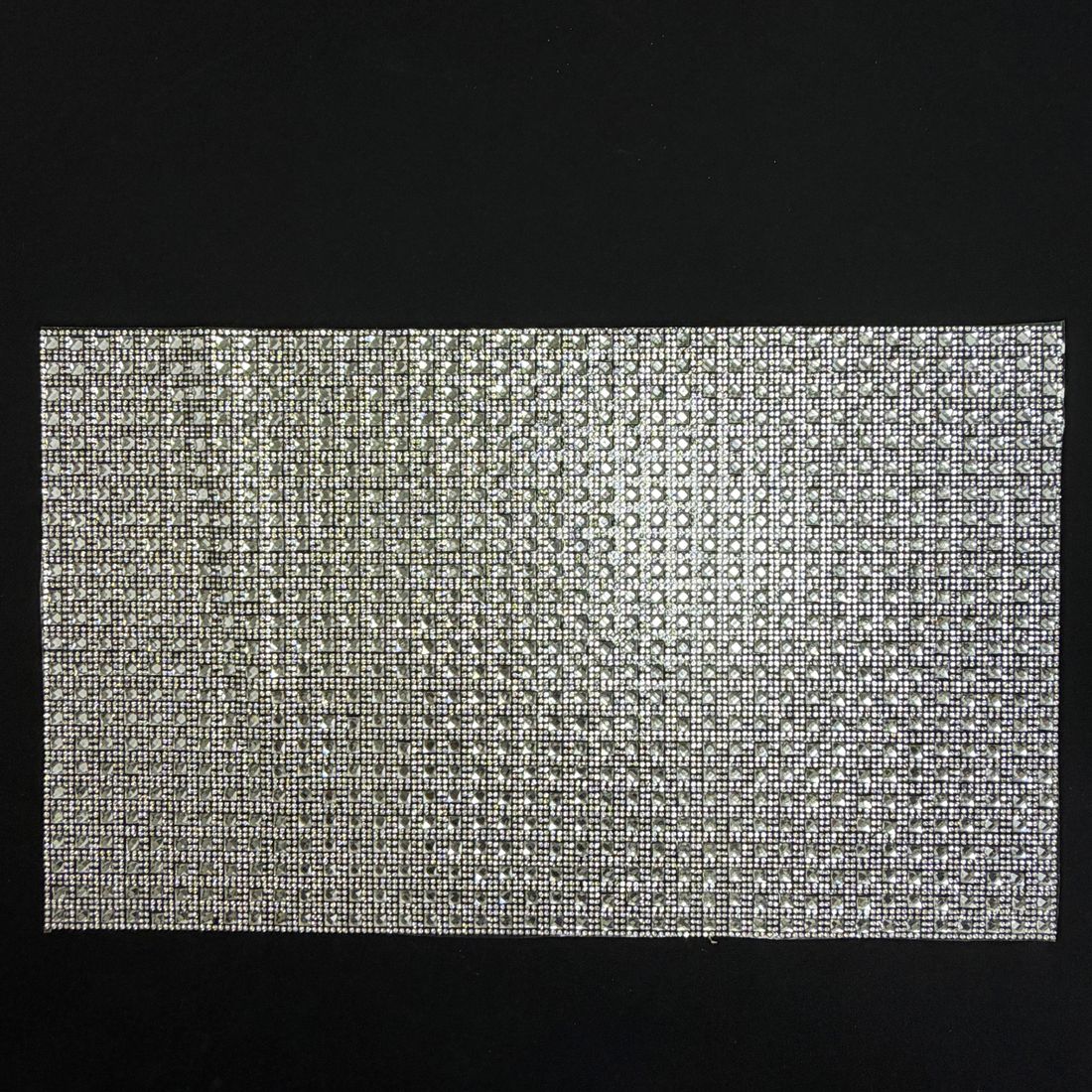

A rhinestone field broken by glass-shaped accents — marquise, navette, or baguette geometries placed at structured intervals. The contrast between round and shaped reads sharper than the eye expects.
Rhinestone sparkle interrupted by resin colour blocks. The two materials read at different optical frequencies — glass returns light, resin holds colour — letting the design alternate between shine and saturation.

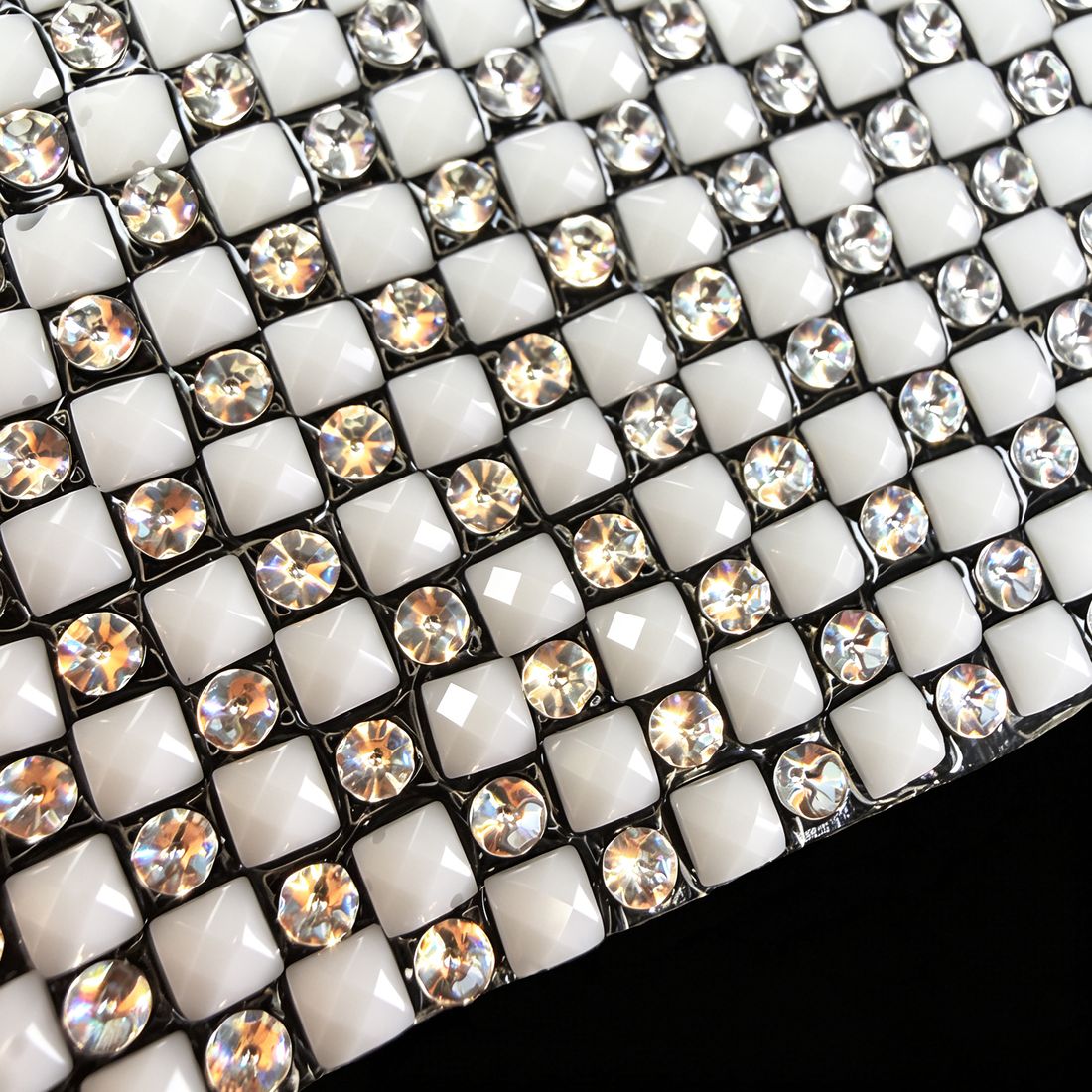

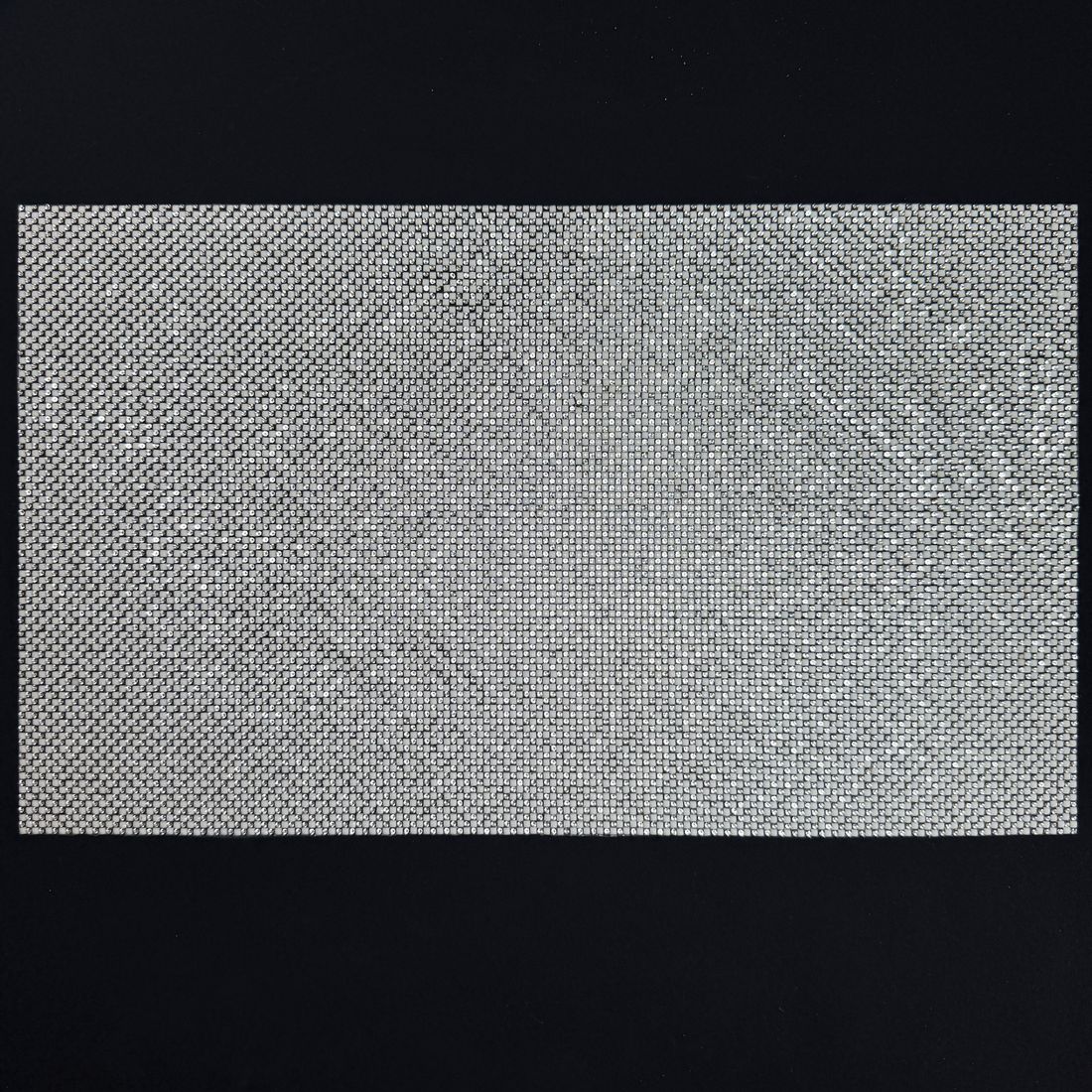

Rhinestone + resin mesh · full sheet钻+树脂钻 胶网 · 整张Detail · shine vs colour局部特写 · 闪 vs 色
Base element底层材质
Rhinestone水钻
Accent element点缀材质
Resin stone (colour-matched to brand swatch)树脂钻（对照品牌色卡）
Accent coverage点缀占比
15–40% — resin can carry larger field share than glass shapes15–40% — 树脂可占比大于异形玻璃钻
Substrate基底
Hot-melt or 513热熔胶或 513

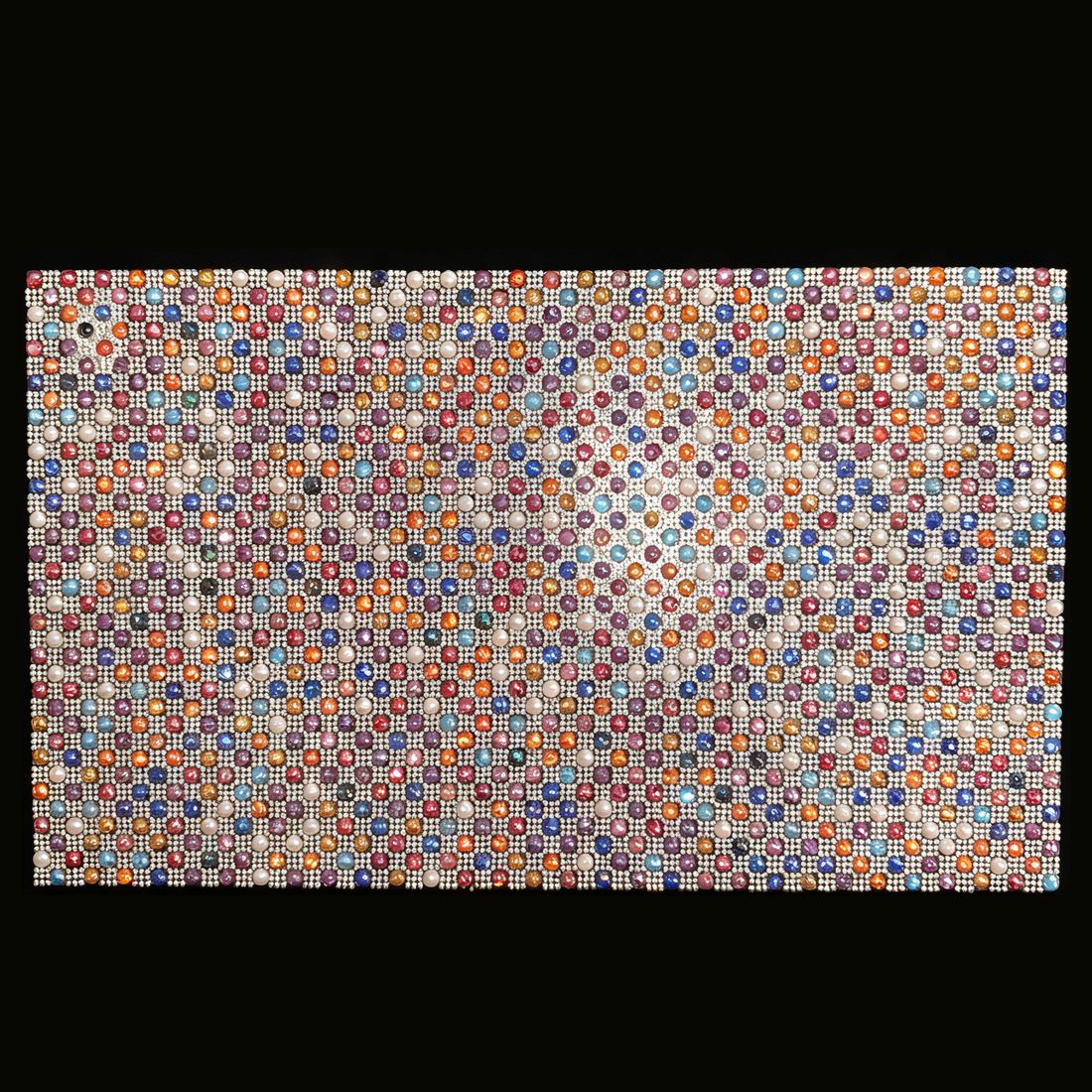

SKU 09 · Rhinestone + ceramic
Rhinestone + ceramic mesh.
钻+陶瓷 胶网
Sparkle against matte texture. The most quiet of the mixed-material layouts — a rhinestone field with ceramic stones interrupting the shine, used where the design wants restraint inside the same sheet.
Rhinestone + ceramic mesh · full sheet钻+陶瓷 · 整张Detail · sparkle vs matte局部特写 · 闪面 vs 哑面
Base element底层材质
Rhinestone水钻
Accent element点缀材质
Ceramic stone (matte finish)陶瓷钻（哑光）
Accent coverage点缀占比
10–30%10–30%
Substrate基底
Hot-melt or 513热熔胶或 513

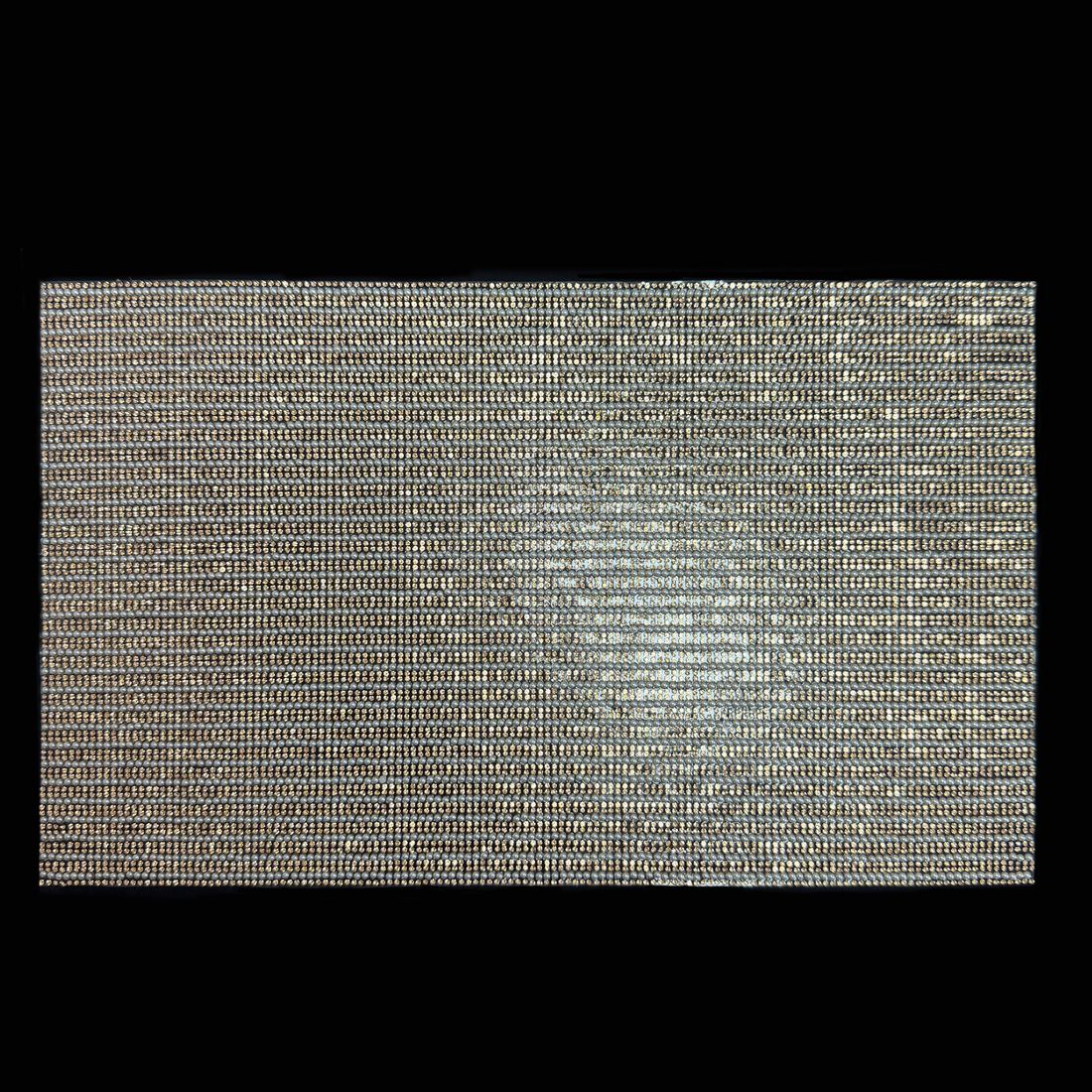

SKU 10 · Rhinestone + ABS
Rhinestone + ABS mesh.
钻+ABS 胶网

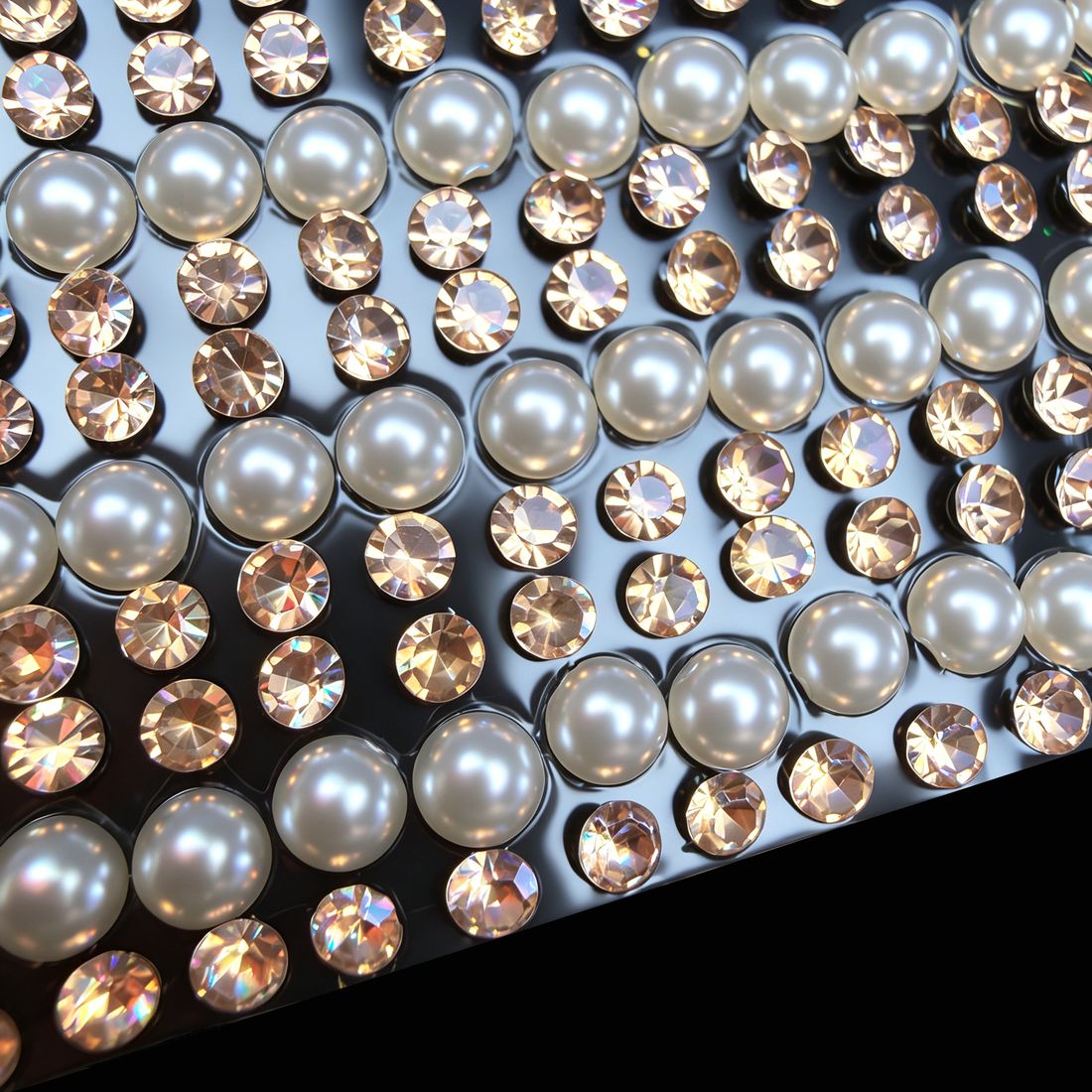

Rhinestone field with ABS pearls or ABS-pearl-like elements worked into the grid. Lighter weight than glass beads, lower cost than pearls — a workhorse mix for cost-sensitive volume orders.
Rhinestone + ABS mesh · full sheet钻+ABS（类珍珠）· 整张Detail · ABS pearl clusters局部特写 · ABS 珠丛
Base element底层材质
Rhinestone水钻
Accent element点缀材质
ABS pearl / ABS-pearl-likeABS 珠 / 类珍珠 ABS
Accent coverage点缀占比
15–35%15–35%
Substrate基底
Hot-melt or 513热熔胶或 513
Note备注
ABS softens at high temperature — verify press parameters before bulk runABS 高温易软化 — 大货前必须测试热压参数
SKU 11 · Rhinestone + chain
Rhinestone + chain mesh.
钻+链条 胶网
Metal chain segments embedded into the rhinestone field. The hardest reading of the mixed-material set — the metal returns a cold, architectural highlight that glass and resin cannot.
Hot-melt only (513 cannot hold chain weight)仅热熔胶（513 承不住链条重量）
Lead-time交期
Standard CM + 1 day for chain placement标准 CM 交期 + 1 天链条嵌入工序

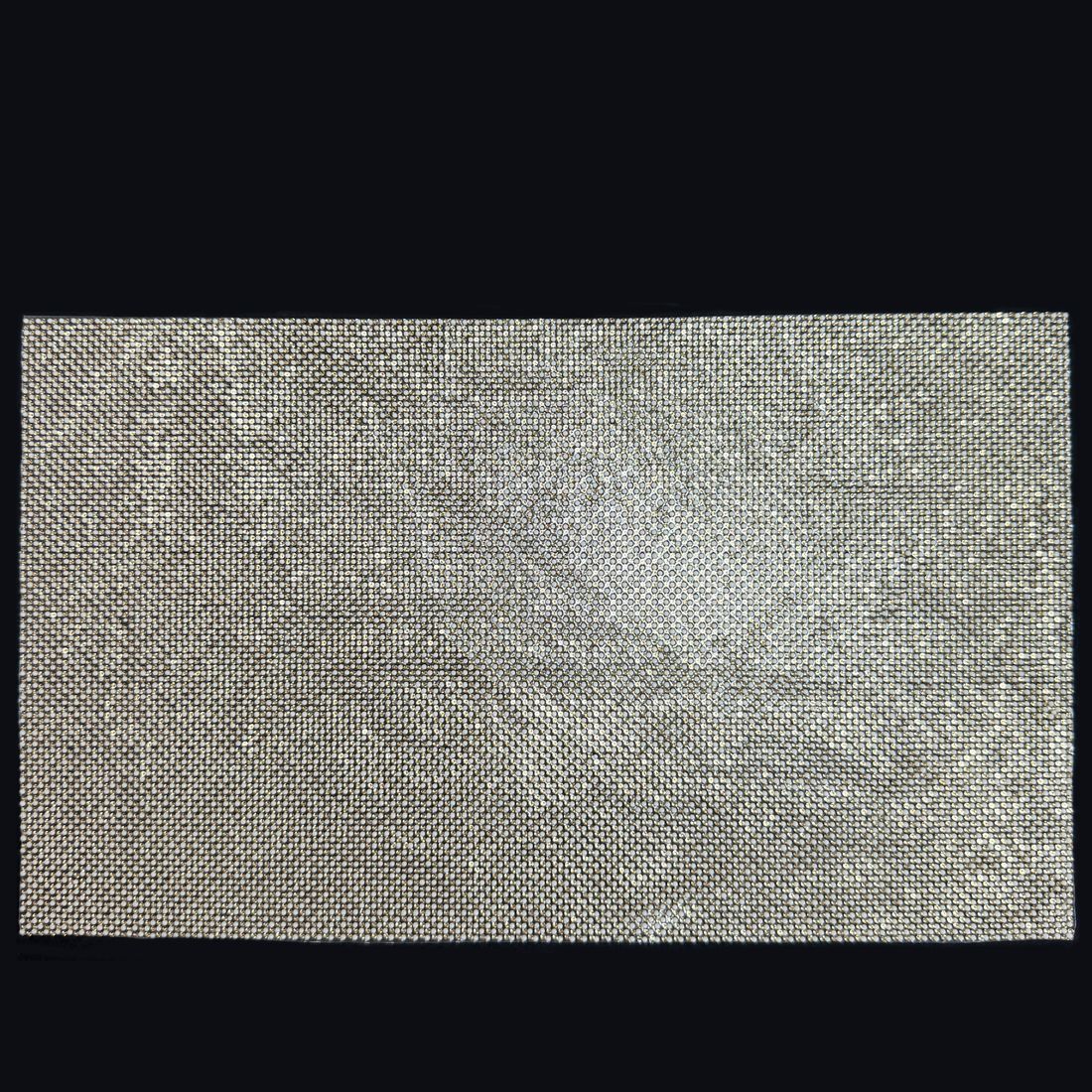

SKU 12 · Rhinestone + glass bead
Rhinestone + glass bead mesh.
钻+玻璃珠 胶网
Different from "rhinestone + glass shaped" — this combination uses round glass beads, not faceted shapes. Returns light from a curved surface rather than a flat facet, producing a softer highlight that pairs naturally with pearls or organic textures.
Every Crystal Mesh layout in this catalog is built from these twelve elements. Four categories organise them by physical type — rhinestone family, glass-shaped, beads, and claw-set metalwork.
Round glass — different from glass shaped rhinestone (B)
C4
Electroplated steel bead
电镀钢珠
Standard finishes: silver, gold, gunmetal, rose-gold
D · Claw-set metalwork (2)
D1
Shaped claw setting
异形爪
Pre-formed claw shapes holding stones
D2
Claw chain
爪链
Continuous chain of claw-set stones
Hot-fix · 烫钻特殊性
Hot-fix is a stand-alone stone material, not a process.
A common misread: "hot-fix" is sometimes treated as a backing option. It is not. Hot-fix (烫钻) is a stone material that ships with thermal adhesive already bonded to the back — it is normally flat-back, so "flat-back hot-fix" is the explicit name. Flat-back rhinestone (A2) is bare; hot-fix (A3) is glue-ready. Different SKUs, different production lines.
Smooth, clean, dry surfaces · not for high-stretch or laundered items光滑、干净、干燥表面 · 不适合高拉伸或水洗件
Pre-bulk rule · 大货前规则
Always sample-test before a bulk run.
Carrier substrates vary widely — the same hot-fix mesh can bond perfectly on cotton and fail on PU coated fabric. Run a press test on the exact carrier the bulk order will use, before the bulk PO is released to production.
承接材质千差万别 — 同一款烫钻胶网，在棉布上贴得牢，在 PU 涂层布上可能失败。大货前 · 必须用大货将使用的同一款载体跑热压测试。
11 · Storage · 储存与处理
Before, during, after
Storage & handling.
储存与处理
Crystal Mesh ships ready to use. Keep it that way with three storage habits.
水钻胶网片出厂即可投产。三个储存习惯能让它一直保持出厂状态。
Storage
Temperature: 15–28°C. Hot-melt adhesive softens above 35°C — sheets can stick together in stacks.
Acclimatise sheets to room temperature for 2–4 hours before pressing if shipped from cold storage.
Wipe carrier substrate with a lint-free cloth before hot-fix — dust and loose fibres prevent full bonding.
Do not bend the sheet against the rhinestone face — stones can pop loose at the edge.
走冷藏运输到货后，建议先在常温下静置 2–4 小时，再进入热压工序。
热压之前用无纺布擦一遍载体表面。灰尘和散落的纤维会直接影响粘合强度。
不要把钻面朝里反折存放，边缘的钻容易因此脱落。
End-consumer care
Wash inside-out, cold water, on a delicate cycle. Avoid dryers.
Do not iron directly on the rhinestone face.
Store finished accessories in soft pouches to avoid abrasion.
反面冷水洗、轻柔模式。避免烘干。
不能直接熨钻面。
成品配饰用软袋单独储存，避免摩擦。
12 · Troubleshoot · 常见问题
Six failures we see most
Common problems & fixes.
常见问题与处理
Six failure patterns that account for the majority of buyer support tickets — with the cause behind each, and the production-floor fix.
我们买家支持工单里出现频率最高的 6 种失效模式，每一条都附上根因和产线处理方案。
Stones pop off after pressing.
热压后钻脱落
Cause: insufficient temperature, time, or pressure — or carrier substrate not heat-bondable.
根因：温度、时间、压力不足 — 或承接材质不耐热压。
Fix: verify 180°C / 15 seconds / medium pressure on the actual carrier; if failure persists, switch to 513 substrate.
处理：在大货载体上验证 180°C / 15 秒 / 中压；仍失败则改用 513 基底。
Mesh curls or wrinkles after pressing.
热压后钻面卷边或起皱
Cause: pressure too high, or carrier substrate has higher heat-shrink ratio than mesh.
根因：压力过大，或载体热缩率高于钻面。
Fix: drop pressure one notch; if carrier is high-shrink, pre-shrink the carrier before pressing.
处理：压力降一档；高缩载体先做预缩处理再热压。
513 backing loses tack at edges.
513 边缘失粘
Cause: high humidity exposure or release liner re-applied unevenly.
根因：高湿度储存或离型纸重贴不齐。
Fix: store sealed below 60% RH; once release liner is removed, apply within the same day.
处理：密封储存于 60% RH 以下；离型纸撕开后当天用完。
Colour variation between cartons.
不同箱次之间颜色不一致
Cause: stones drawn from different production batches.
根因：不同生产批次的钻混入同一订单。
Fix: on reorders, specify "same batch as previous PO" in writing; on new orders, request a colour-cluster confirmation sample.
处理：复购时书面注明"沿用上批次"；新单先要颜色一致性样品确认。
Steel bead elements darken in storage.
电镀钢珠在储存中变暗
Cause: silver plating oxidises under air, moisture, or UV exposure.
根因：银电镀在空气、湿气、UV 下氧化。
Fix: store in sealed mylar with desiccant; for long shelf-life, specify gold or gunmetal plating instead.
处理：密封 mylar 袋 + 干燥剂；长期储存改指定金或枪色电镀。
Density looks different from sample.
大货密度看起来与样品不同
Cause: sample and bulk PO did not specify the same bead-count grade.
根因：样品和大货 PO 上的颗粒数档不一致。
Fix: always reference bead count, not just SS size, on every PO. "SS6 · 108 × 180" is unambiguous; "SS6" alone permits seven different density grades.
处理：每张 PO 必须写颗粒数，不能只写 SS 钻号。"SS6 · 108 × 180" 无歧义；只写 "SS6" 涵盖 7 个密度档。
13 · Capability · 工厂能力
Behind the catalog
Production capability.
工厂能力
Twelve Crystal Mesh subcategories from one factory in Pujiang, Zhejiang — seventeen years of rhinestone craft, eight thousand square metres under one roof.
All eight LOCA product lines under one roof. Crystal Mesh shares the floor with Diamond Rope, Diamond Lace, Bangle Diamond Sticker, Diamond Flower, Shoe Patch, Shoe Upper, and PVC Strip.
A dedicated handcraft team for stacked-layer placement, mixed-material accent work, and stone-setting that machines cannot reach.
叠装层的布点、混搭材质的点缀，以及机器到不了的钻位，都由专属手工团队完成。
60% > 10 yrs
60% 员工 10 年+
Sixty percent of the workforce has been with LOCA more than ten years. Craft consistency comes from the people who do the work, not from the machine alone.
60% 的员工工龄超过 10 年。工艺一致性来自这些做活的人，不是单靠机器。
Since 2009
2009 年起
Seventeen years of rhinestone-accessory craft. Two rhinestone machines in Pujiang at the start; eight product lines in the catalog today.
17 年水钻辅料工艺，从浦江 2 台水钻设备起步，发展到今天的 8 条产品线。
Quality philosophy · 品质哲学
Not the highest. The most consistent.
Our quality is not the highest in the industry. It is the most consistent. The same hot-fix temperature, the same bead-count tolerance, the same colour match — carton after carton, season after season.
Identify the subcategory and density grade that fits your project — then send a brief, and we'll send back a physical sample sheet within the standard sampling lead-time.
从 12 个子类与完整的密度库里选定方向，把简报发给我们，按标准打样周期把实物样张寄到你手上。
What to include in your sample brief
Subcategory — for example: SKU 07 Rhinestone + glass-shaped.
Density — SS6 · 108 × 180 (always specify bead count, not just SS).
Substrate — hot-melt or 513.
End use — one line is enough: "footwear vamp", "bridal bodice", "bangle decoration".
Carrier material — if known: "cotton twill", "PU coated fabric", "leather".
